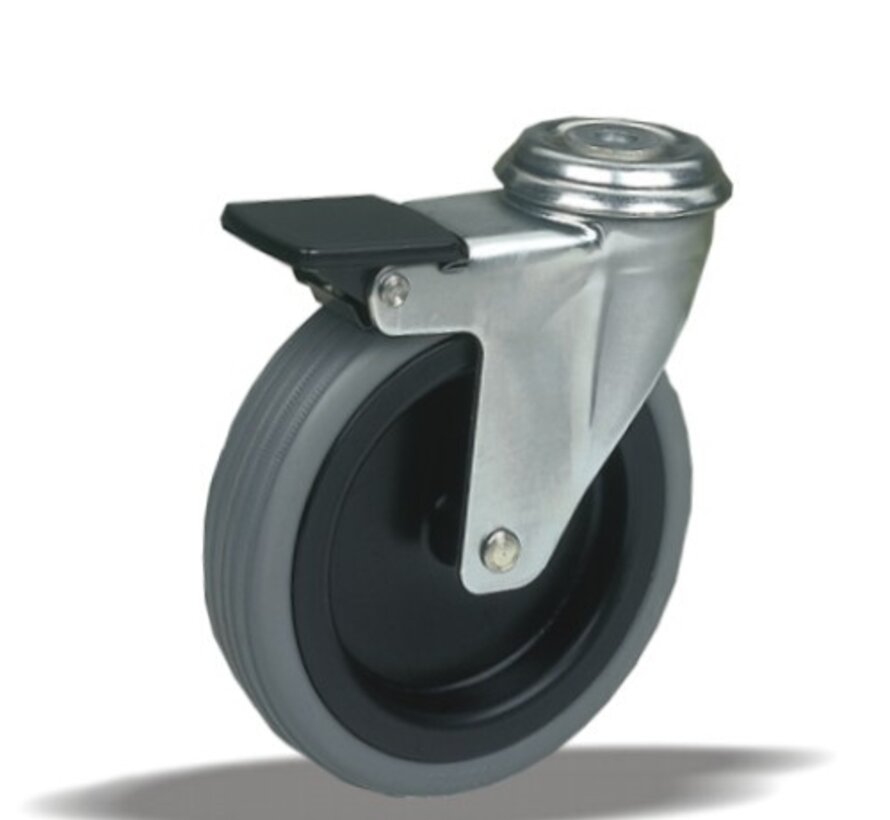

| Type | Furniture swivel castor with total brake |
|---|---|
| Wheel diameter | 75 mm |
| Wheel width | 25 mm |
| Tread | thermoplastic rubber (TPE) tread, 92 Shore A |
| Tread colour | grey |
| Wheel centre | polypropylene |
| Bearing | plain bearing |
| Load capacity, dynamic | 75 kg |
| Load capacity, static | 90 kg |
| Fitting | single bolt hole |
| Hole diameter | 10.5 mm |

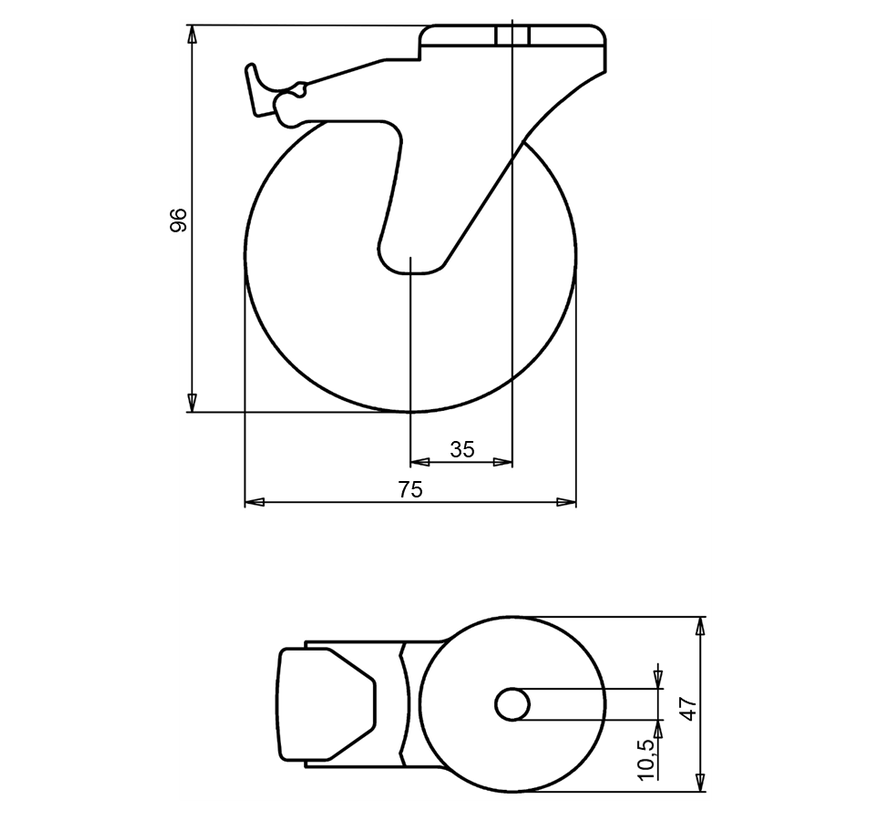

| Overall height | 96 mm |
| Offset | 35 mm |
| Brake | total brake (locks wheel and swivel) |
| Weight | 0.25 kg |
| Temperature, continuous | -20 to +60 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Little deformation when the unit is rarely moved, no marks on the floor, and the castor turns easily. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
