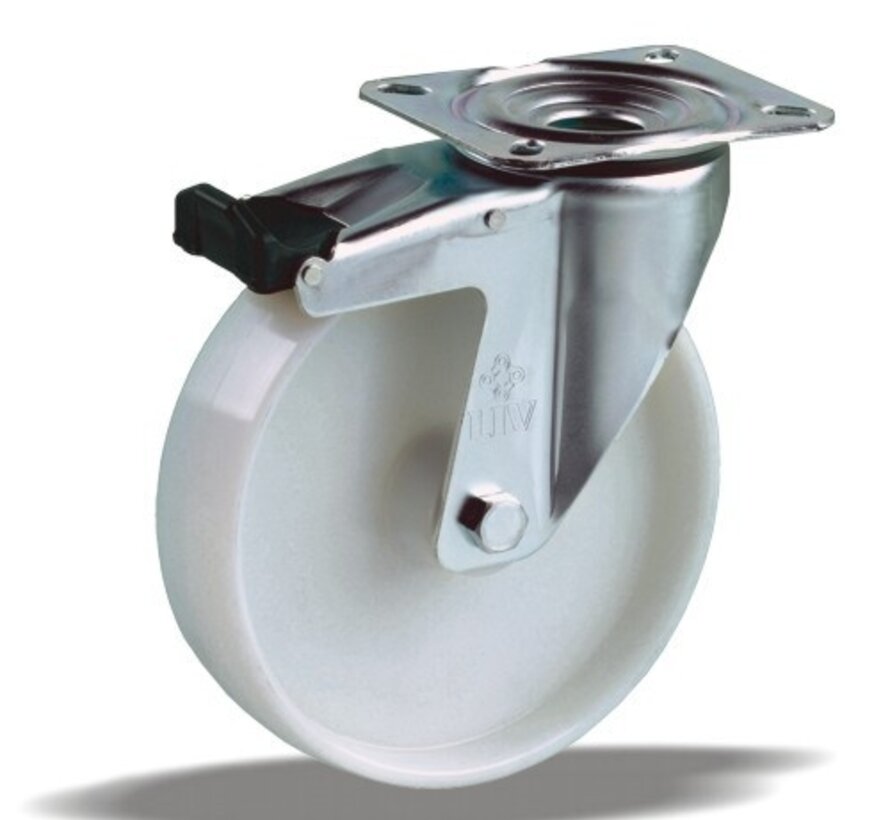

standard Swivel castor with brake + solid polyamide wheel Ø150 x W46mm for 300kg Prod ID: 30504

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Swivel castor with brake with an overall height of 180 mm
Wheel diameter x width: 150 x 46 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with ball bearing and solid polyamide wheel with hardness 70±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Glide through the hall Swivel castor with brake:
✓ chemical resistance
✓ load capacity and shock impact resistant
✓ high temperature shifts

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor with brake + solid polyamide wheel Ø150 x W46mm for 300kg Prod ID: 30504

ID 30504: Castor overall height 180 mm | 4 mounting holes with distance 105x80 mm | Wheel with ball bearing and solid polyamide wheel with hardness 70±5 Shore D | The double brake system, brakes the turning of the wheel and the swivel rotation. | Glide t

Quantity

You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
Ask us for CAD/STEP/Iges Models
Fastest delivery of high quantities of castors possible
Press forming steel OEM parts is our expetise
