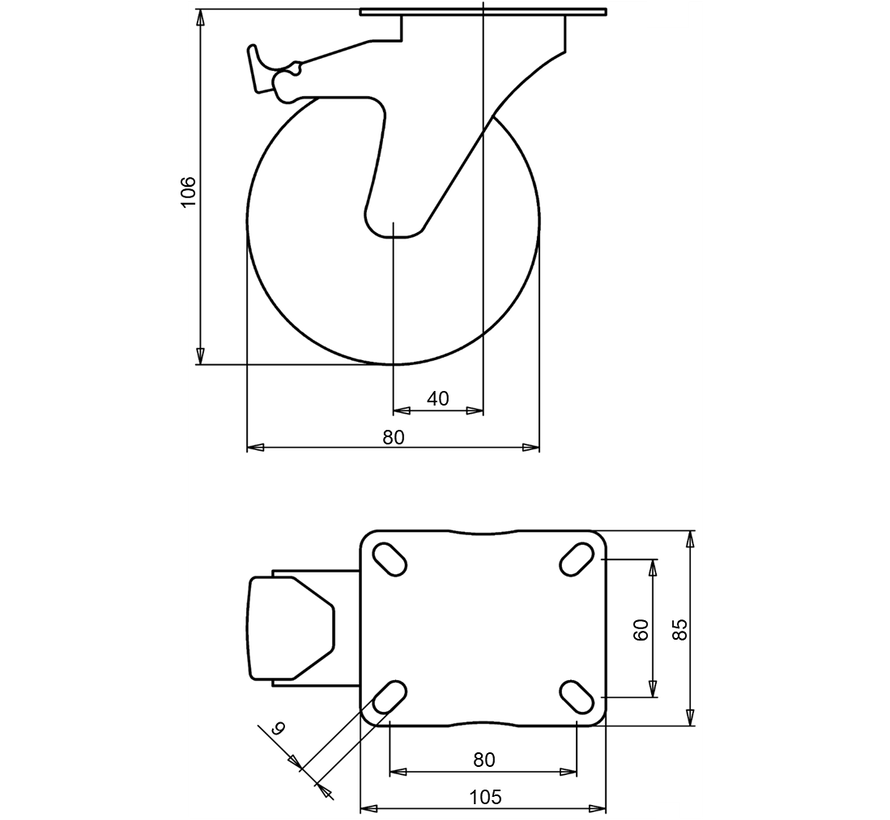

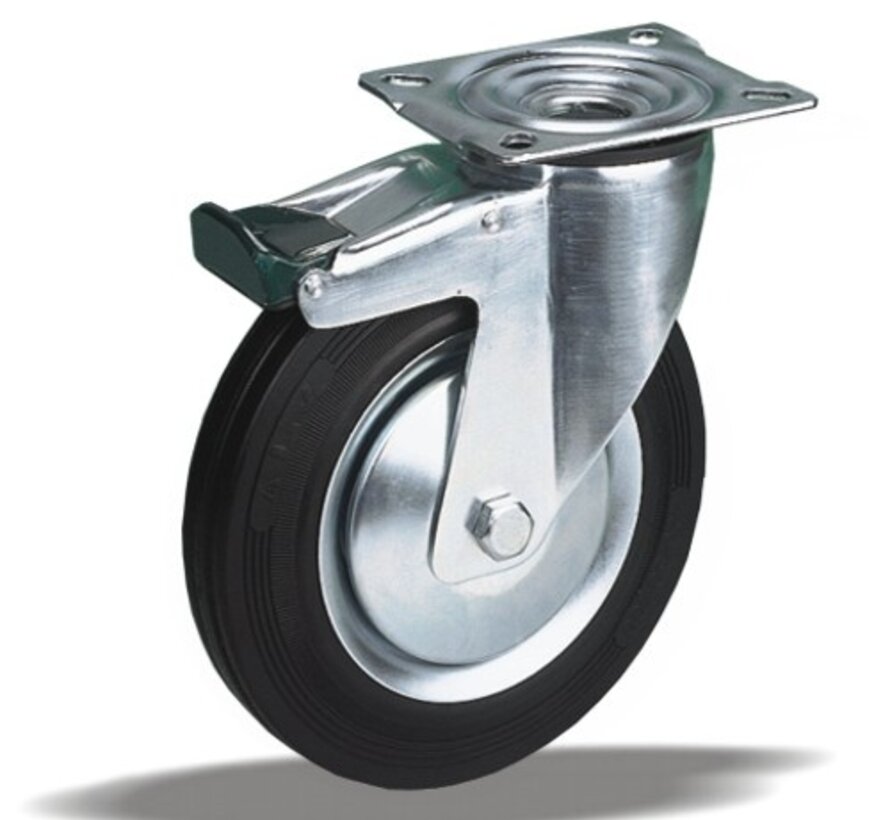

Swivel transport castor with brake with a 80 mm wheel, black rubber tread, on plain bearing. It carries 65 kg dynamic and 80 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm.
| Type | Swivel transport castor with brake |
|---|---|
| Wheel diameter | 80 mm |
| Wheel width | 30 mm |
| Tread | black rubber tread, 80 Shore A |
| Tread colour | black |
| Wheel centre | steel, zinc electroplated, Cr(VI)-free |
| Bearing | plain bearing |
| Load capacity, dynamic | 65 kg |
| Load capacity, static | 80 kg |
| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Hole diameter | 9 mm |
| Overall height | 106 mm |
| Offset | 40 mm |
| Brake | total brake (locks wheel and swivel) |
| Weight | 0.9 kg |
| Temperature, continuous | -20 to +70 °C |
| Temperature, short exposure (max. 10 min) | -30 to +80 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC). Tested to EN 12532.
Properties and use
Steers easily and copes with uneven floors and obstacles. Steel rim and rubber tyre make a strong wheel. On request: other wheel and tyre colours, and an electrically conductive (EDS) or antistatic tyre.
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
