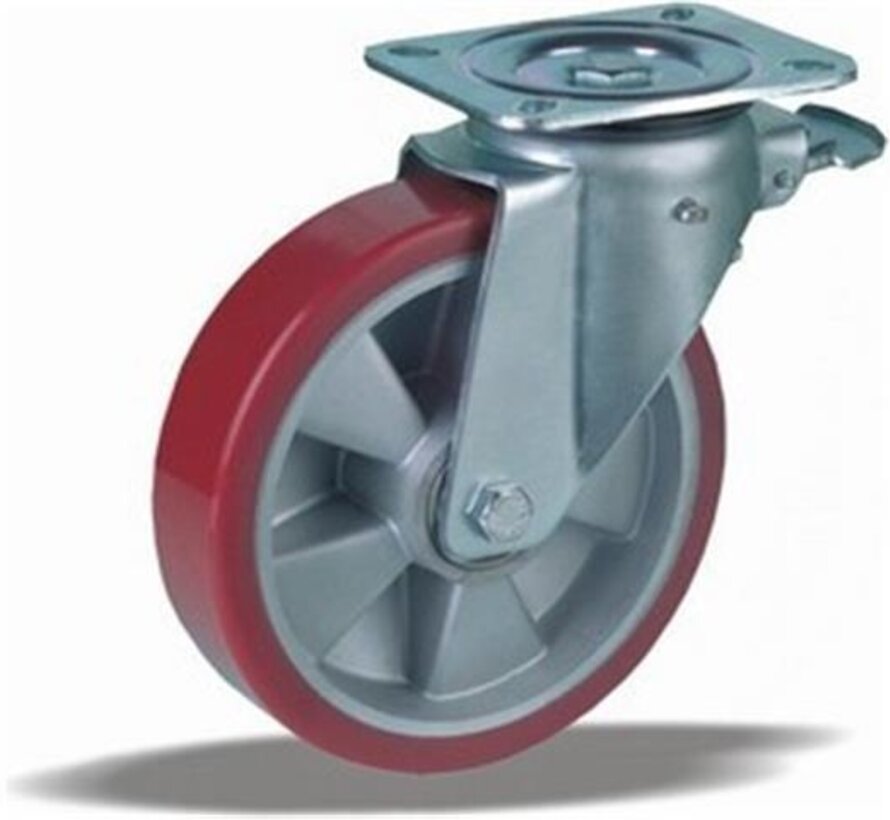

heavy duty Swivel castor with brake with an overall height of 289 mm
Wheel diameter x width: 250 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on aluminium
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 650 kg
Static 800 kg
Temperature range:
Continious operation: -25 | -55°C
Short (10 min) exposure: -40 | +55°C
Advantages of this Indestructable footing Swivel castor with brake:
✓ burden transport
✓ resistance
✓ own weight
heavy duty Swivel castor with brake + injection-moulded polyurethane tread Ø250 x W50mm for 650kg Prod ID: 46782
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-123-50K
- SKU 46782
- EAN 3838461467820
Specifications
