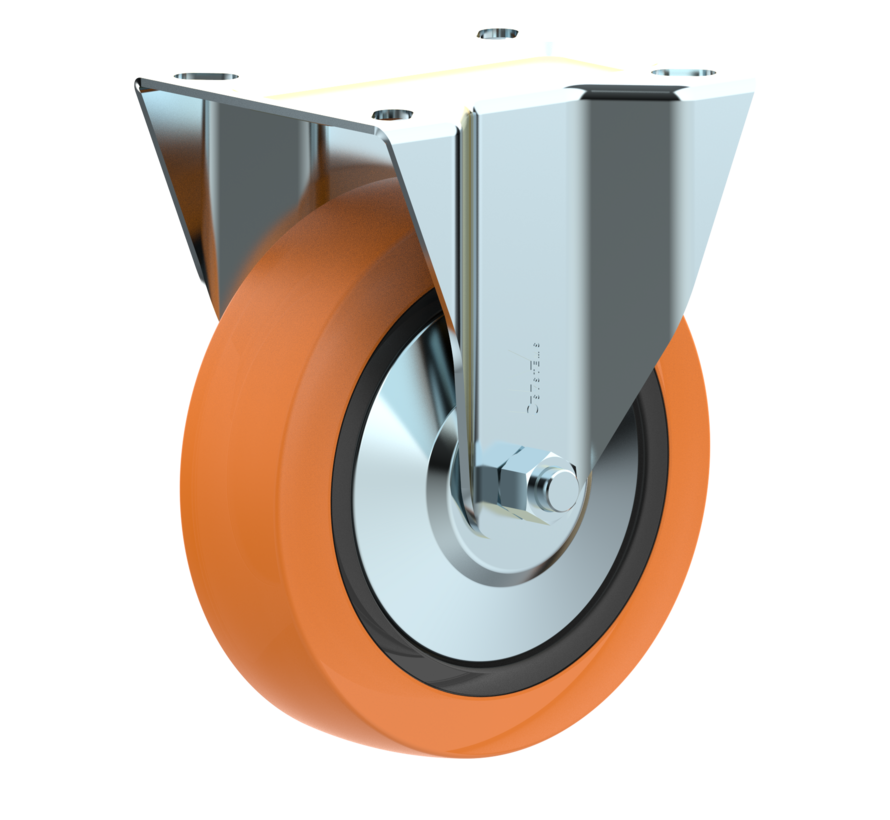

| Type | Fixed castor |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
| Tread | elastic rubber tyre, 70 Shore A |
| Tread colour | orange |
| Wheel centre | polyamide |
| Bearing | roller bearing |
| Load capacity, dynamic | 300 kg |
| Load capacity, static | 370 kg |
| Top plate | 135x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 190 mm |
| Weight | 1.1 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
Fork zinc electroplated and Cr(VI)-free. Tread free of PAH (EU directive 2005/69/EC).
Properties and use
The elastic rubber tyre starts rolling with little force and rides smoothly. It is gentle on the floor, also when the unit stands still. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
