for rough floors Fixed castor + black pneumatic Ø260 x W85mm for 150kg Prod ID: 91125

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

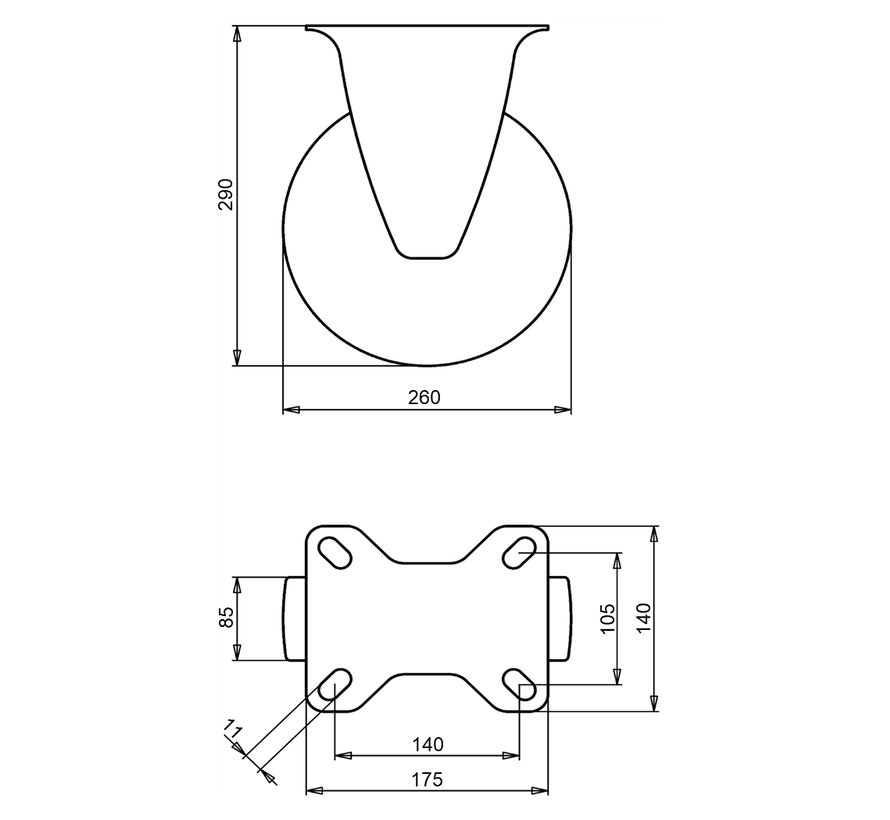

for rough floors Fixed castor with an overall height of 290 mm
Wheel diameter x width: 260 x 85 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 140x105 mm and top plate outer dimensions: 175x140 mm
Wheel with plain bearing and black pneumatic with hardness 80 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -5 | +60°C
Short (10 min) exposure: -5 | +60°C

Advantages of this Rugged floor tour Fixed castor:
✓ over big stones
✓ manipulation
✓ absorbing

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS for rough floors Fixed castor + black pneumatic Ø260 x W85mm for 150kg Prod ID: 91125

ID 91125: Castor overall height 290 mm | 4 mounting holes with distance 140x105 mm | Wheel with plain bearing and black pneumatic with hardness 80 ° Shore A | Rugged floor tour, flexible over big stones, simple manipulation, Shock absorbing
