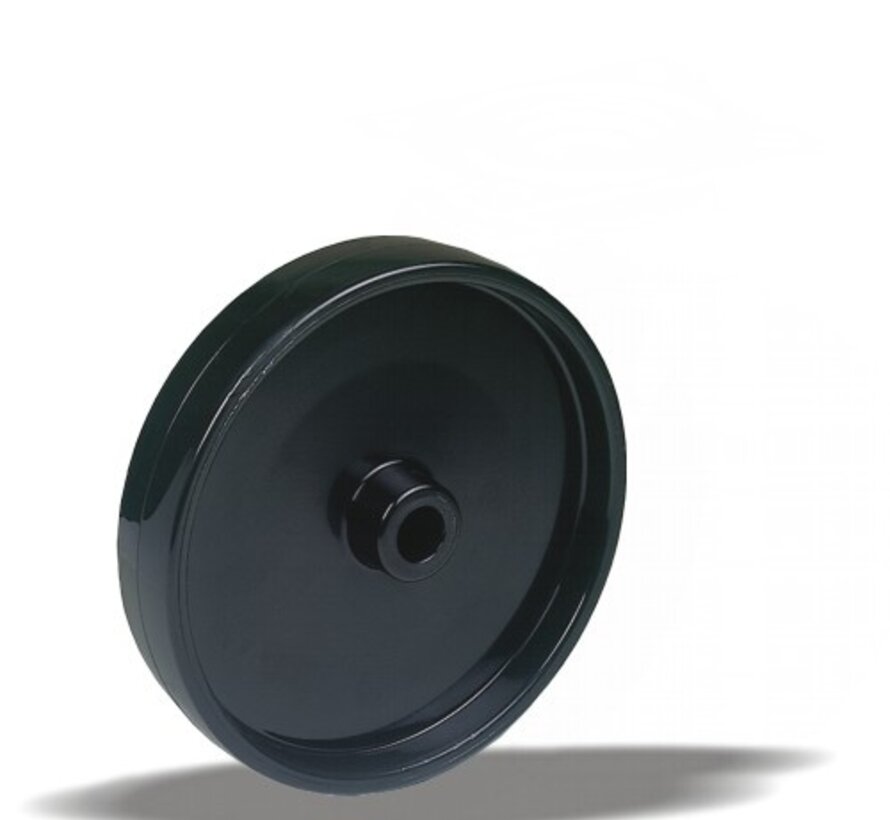

| Type | Heavy duty wheel |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 44 mm |
| Tread | solid polyamide wheel, 70±5 Shore D |
| Wheel centre | polyamide |
| Bearing | plain bearing |
| Load capacity, dynamic | 400 kg |
| Load capacity, static | 500 kg |
| Axle hole | 20 mm |
| Weight | 0.65 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
Properties and use
Low wear, little effort to keep rolling and easy to turn. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
