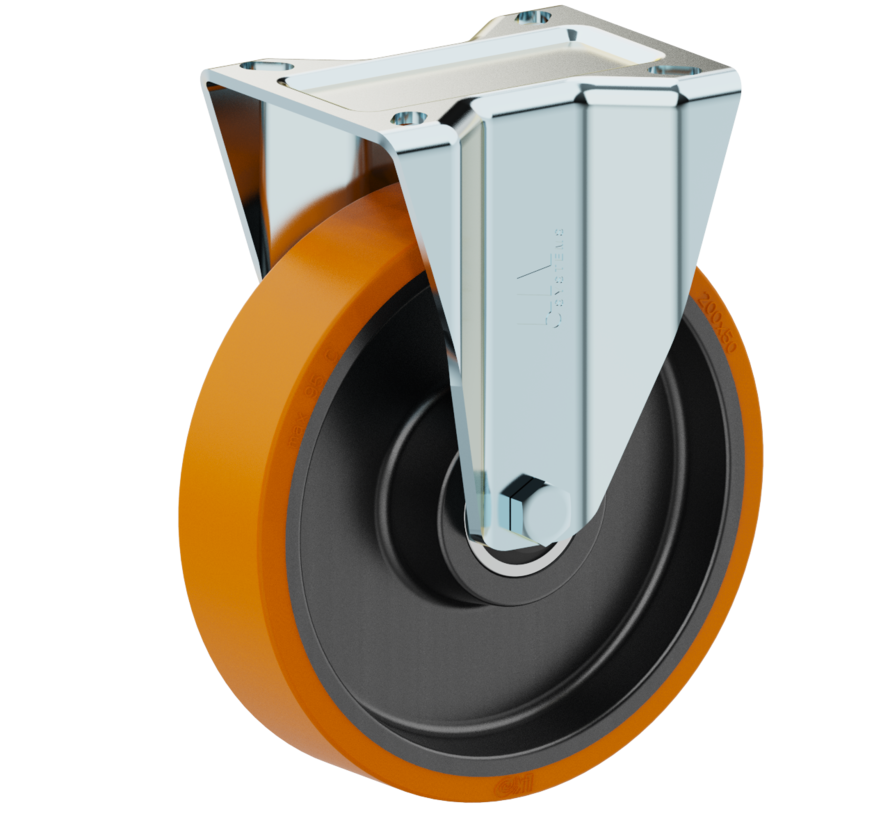

Heavy duty fixed castor 200 mm, polyurethane, ball bearing, plate 140x110 mm, 1000 kg, Art. 2-141-40K

Heavy duty fixed castor with a 200 mm wheel, polyurethane tread, on ball bearing. It carries 1000 kg dynamic and 1250 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeHeavy duty fixed castor
Wheel diameter200 mm
Wheel width50 mm
Treadpolyurethane tread, 65 Shore A
Tread colourorange/red/brown
Wheel centrecast iron
Bearingball bearing
Load capacity, dynamic1000 kg
Load capacity, static1250 kg
Top plate140x110 mm
Hole distance105x80 mm
Fixing hole diameter11 mm
Overall height240 mm
Weight5.75 kg
Temperature, continuous-20 to +70 °C
Temperature, short exposure (max. 10 min)-30 to +80 °C
Tread materialInjection-moulded polyurethane
Directional lockOptional
Available versions (2)
  • Long pedal
  • Short pedal

Fork zinc electroplated and Cr(VI)-free.

Properties and use

Carries high loads and keeps its shape when the unit stands for a long time. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
