standard fixed transport castor + black rubber tyre Ø80 x W30mm for 65kg Prod ID: 59320

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

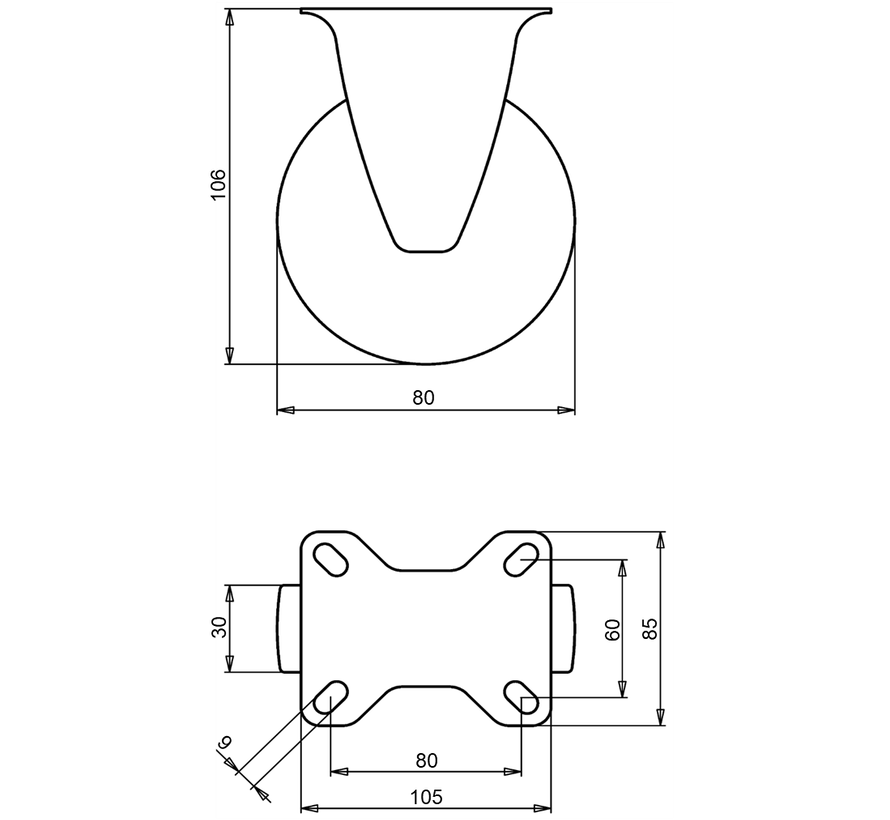

standard fixed transport castor with an overall height of 106 mm
Wheel diameter x width: 80 x 30 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A on steel rim with electrogalvanization zinc plating anti-corrosion protection Cr6-free.

Approved and tested load capacity
Dynamic 65 kg
Static 80 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Comfortable drive fixed transport castor:
✓ to manoeuvre
✓ performance on uneven floor or obstacles
✓ and strong wheel systems

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard fixed transport castor + black rubber tyre Ø80 x W30mm for 65kg Prod ID: 59320

ID 59320: Castor overall height 106 mm | 4 mounting holes with distance 80x60 mm | Wheel with roller bearing and black rubber tyre with hardness 80 ° Shore A | Comfortable drive, easy to manoeuvre, good performance on uneven floor or obstacles, robust and
