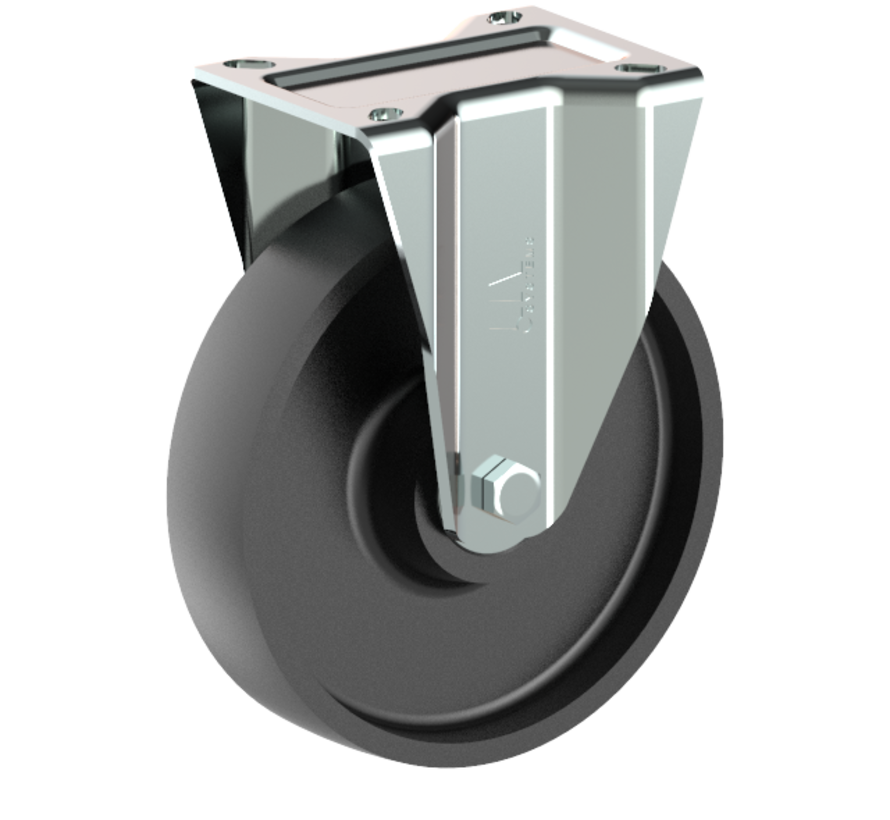

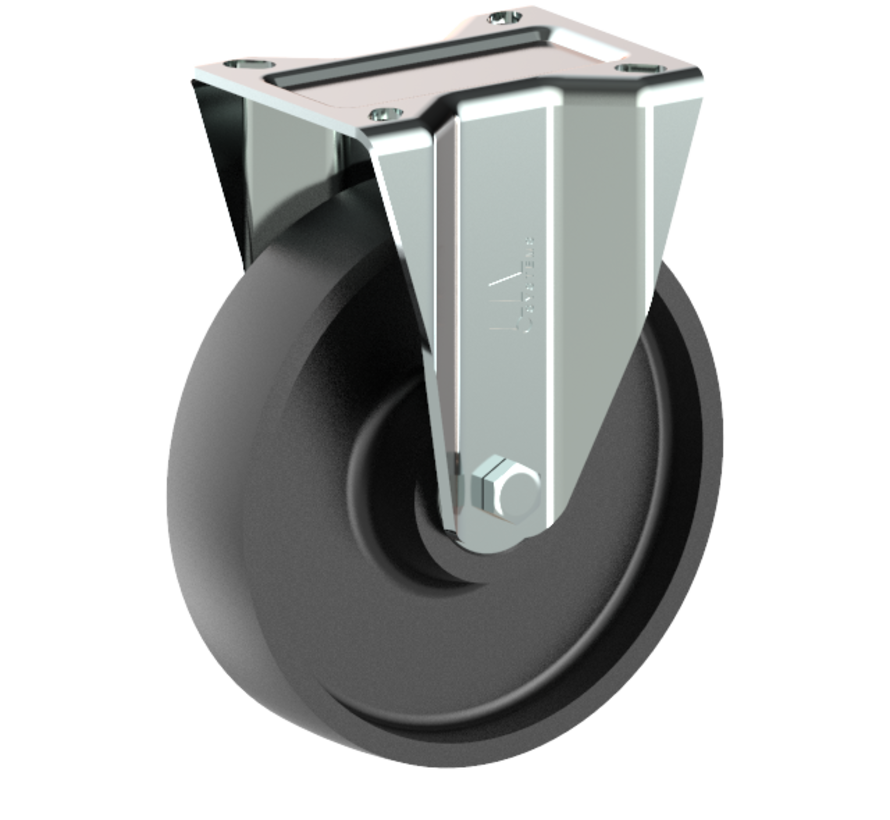

Heavy duty fixed castor 200 mm, cast iron, ball bearing, plate 140x110 mm, 800 kg, product code 56395
Heavy duty fixed castor, 200 mm wheel diameter, cast iron tread, running on ball bearing. Rated load is 800 kg dynamic, 1000 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Heavy duty fixed castor |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | cast iron tread, 65 Shore A |
| Tread colour | black |
| Wheel centre | cast iron |
| Bearing | ball bearing |
| Load capacity, dynamic | 800 kg |
| Load capacity, static | 1000 kg |
| Top plate | 140x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 240 mm |
| Weight | 6 kg |
| Temperature, continuous | -40 to +130 °C |
| Temperature, short exposure (max. 10 min) | -40 to +130 °C |
| Directional lock | Optional Available versions (2)
|
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Wears slowly and rolls with low resistance. Large temperature changes are no problem. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Product code | 56395 |
|---|---|

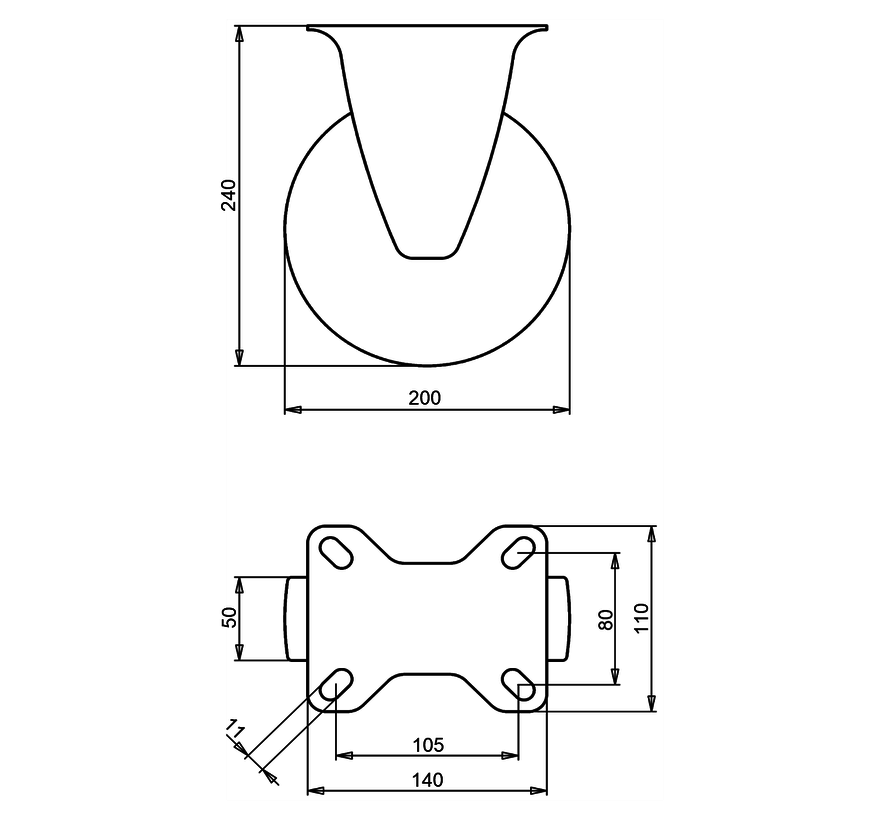

| Drawing number | 2-151-40K |
| EAN | 3838461563959 |
