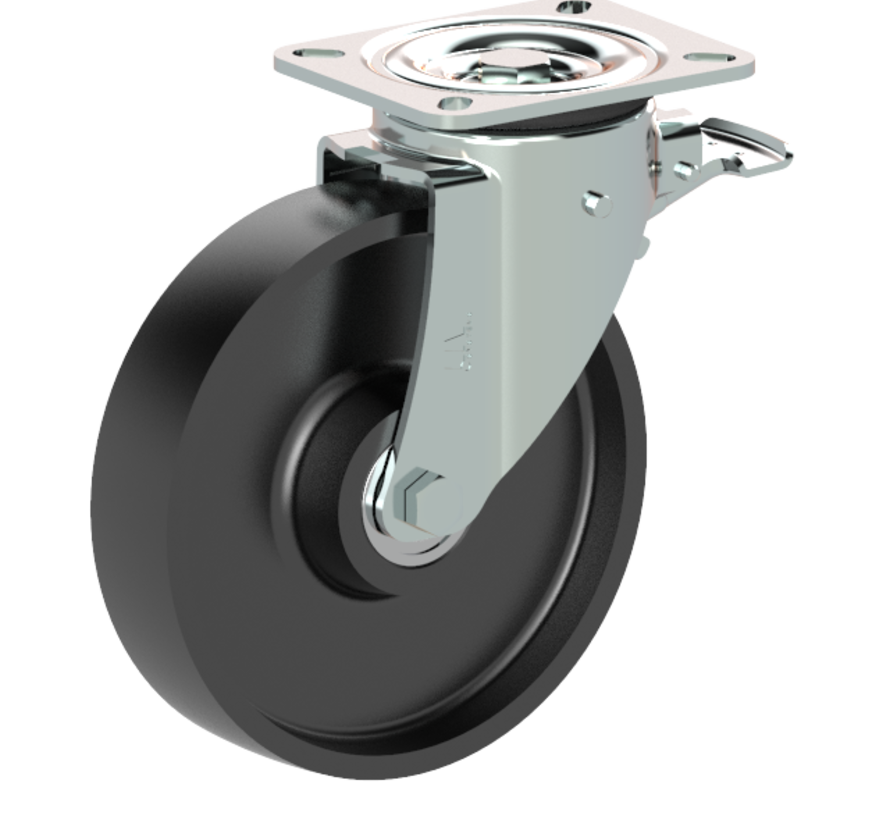

Heavy duty swivel castor with total lock 200 mm, cast iron, ball bearing, plate 140x110 mm, 800 kg, product code 42533
Heavy duty swivel castor with total lock with cast iron tread, wheel diameter 200 mm, on ball bearing. It carries 800 kg dynamic and 1000 kg static, mounted on a 140x110 mm top plate with hole distance 105x80 mm. The total lock brakes the rotation of the wheel and the swivel head.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description

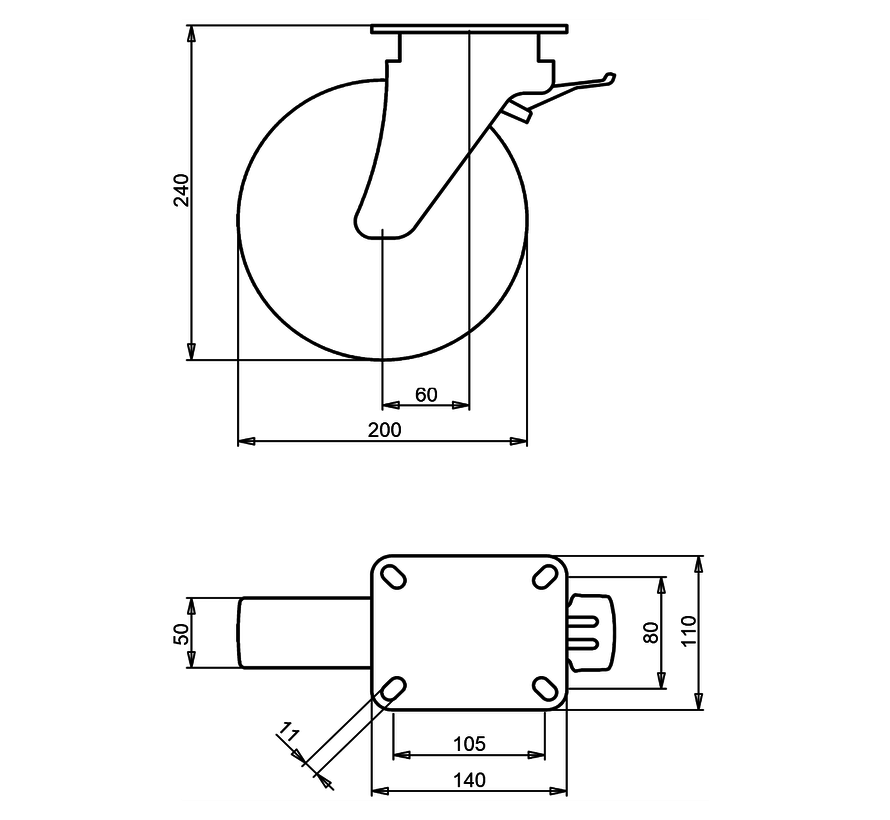

| Type | Heavy duty swivel castor with total lock |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | cast iron tread, 180-220 180-220 HB |
| Wheel centre | cast iron |
| Bearing | ball bearing |
| Load capacity, dynamic | 800 kg |
| Load capacity, static | 1000 kg |
| Top plate | 140x110 mm |
| Hole distance | 105x80 mm |
| Fixing hole diameter | 11 mm |
| Overall height | 240 mm |
| Offset | 60 mm |
| Brake | total lock (locks wheel and swivel) |
| Directional lock | optional Available versions (2)
|
| Weight | 6.9 kg |
| Temperature, continuous | -40 to +130 °C |
| Temperature, short exposure (max. 10 min) | -40 to +130 °C |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Wears slowly and rolls with low resistance. Large temperature changes are no problem. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Product code | 42533 |
|---|---|
| Drawing number | 2-153-40K |
| EAN | 3838461425332 |
