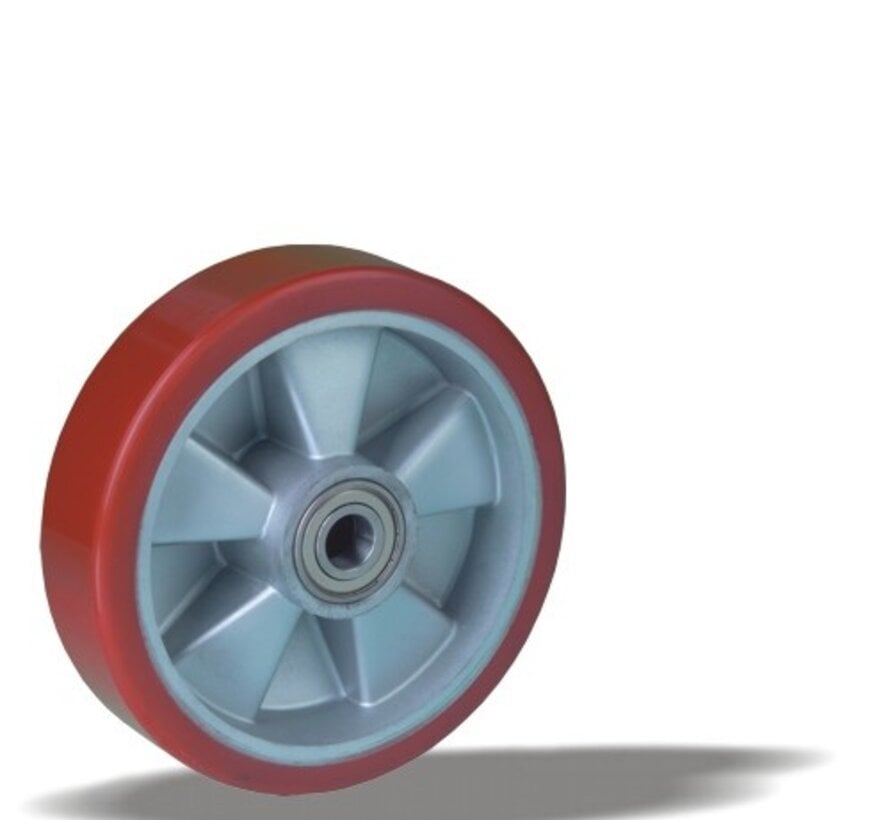

| Type | Heavy duty wheel |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Tread | polyurethane tread, 92 Shore A |
| Tread colour | orange/red/brown |
| Wheel centre | aluminium |
| Bearing | ball bearing |
| Load capacity, dynamic | 800 kg |
| Load capacity, static | 1000 kg |
| Axle hole | 20 mm |
| Weight | 1.6 kg |
| Temperature, continuous | -25 to +55 °C |
| Temperature, short exposure (max. 10 min) | -40 to +55 °C |
Properties and use
Low own weight and chemical resistance. Heavy loads move with little effort. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 24 hours.
Specifications from the LIV product database, October 2026.
