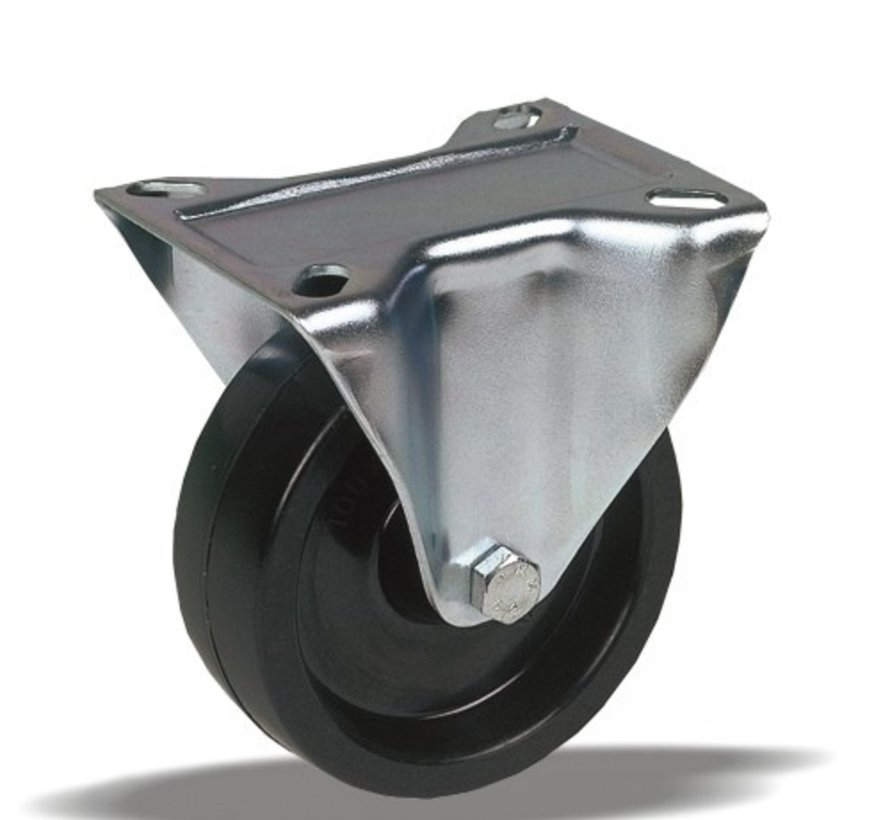

Fixed castor 125 mm, heat-resistant polyamide, plain bearing, plate 105x85 mm, 200 kg, product code 44919
Fixed castor with a 125 mm wheel, heat-resistant solid polyamide wheel, on plain bearing. It carries 200 kg dynamic and 250 kg static, mounted on a 105x85 mm top plate with hole distance 80x60 mm.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Fixed castor |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 38 mm |
| Tread | heat-resistant solid polyamide wheel, 85±5 Shore D |
| Wheel centre | heat-resistant polyamide |
| Bearing | plain bearing |
| Load capacity, dynamic | 200 kg |
| Load capacity, static | 250 kg |
| Top plate | 105x85 mm |
| Hole distance | 80x60 mm |
| Fixing hole diameter | 9 mm |
| Overall height | 155 mm |
| Weight | 0.64 kg |
| Temperature, continuous | -25 to +250 °C |
| Temperature, short exposure (max. 10 min) | -40 to +300 °C |
| Tread material | Heat resistant polyamide |
| Tread hardness | 85 Shore D |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
Built for heat and used in bakeries. The continuous and short-term temperatures are in the table. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Product code | 44919 |
|---|---|
| Drawing number | 2-428-25D |
| EAN | 3838461449192 |
Made by LIV
About LIV as a manufacturer of castors and wheels (opens in a new tab)
Need a version to your drawing? Project inquiry (opens in a new tab)
