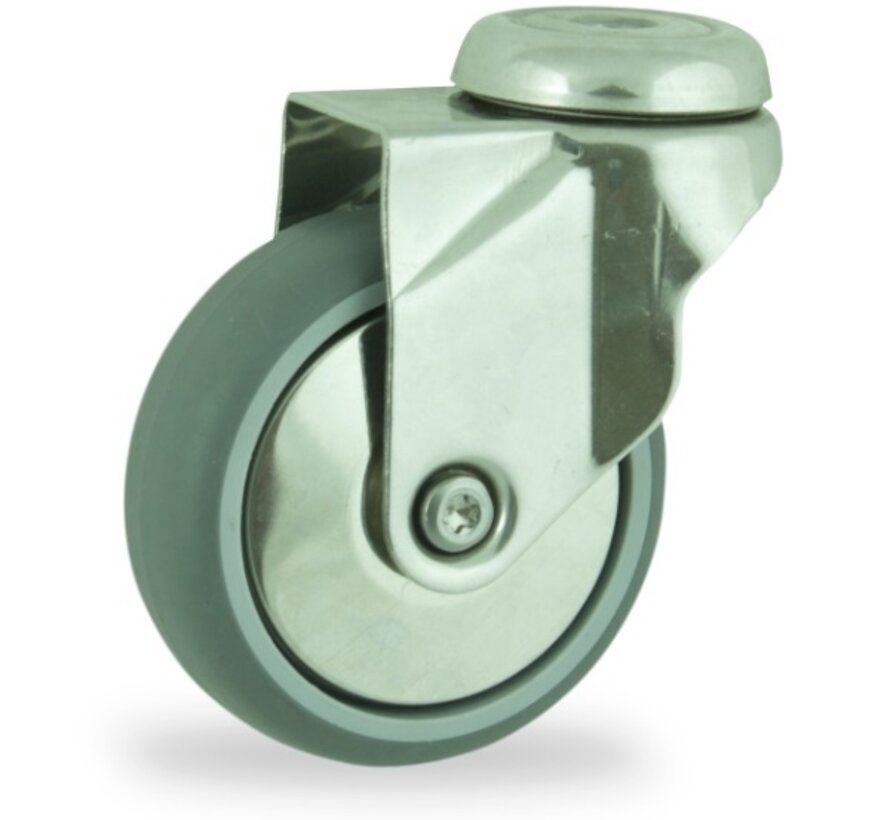

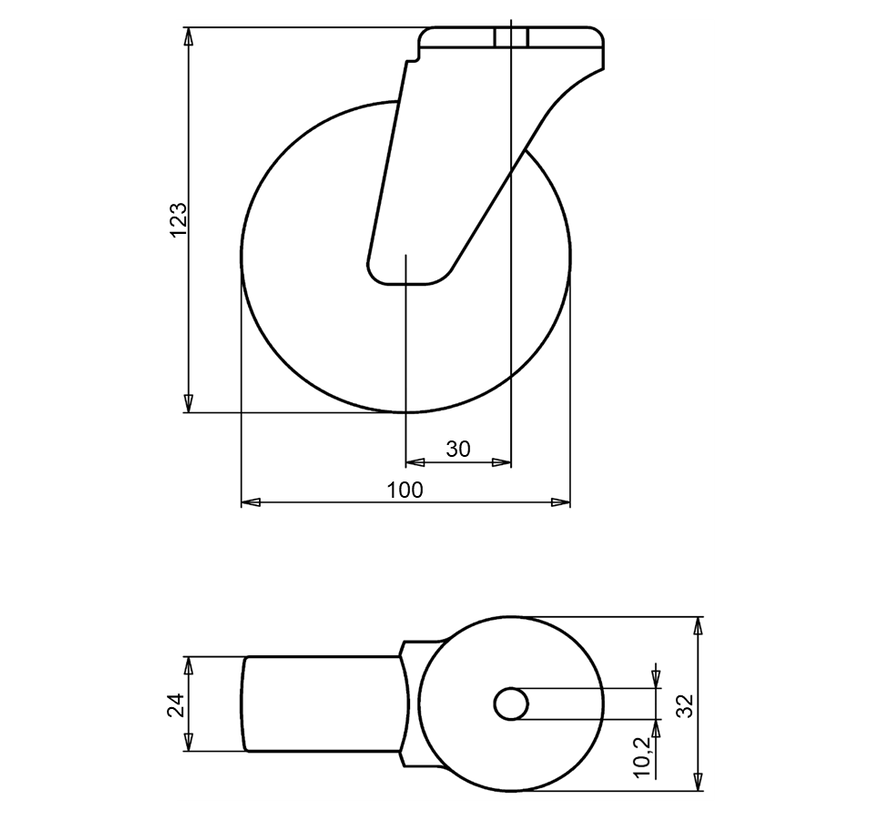

institutianal Swivel castor with an overall height of 123 mm
Wheel diameter x width: 100 x 24 mm
Top plate with 4 mounting holes of 10,2 mm, mounting hole distance #$% mm and top plate outer dimensions: 32 mm
Wheel with ball bearing and polyethylene tread with hardness 82 ° Shore A on polypropylene.
Approved and tested load capacity
Dynamic 70 kg
Static 80 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Graceful moving Swivel castor:
✓ proof
✓ no marks on the floor
✓ rotation
institutianal Swivel castor + polyethylene tread Ø100 x W24mm for 70kg Prod ID: 44831
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-7LG-20K
- SKU 44831
- EAN 3838461448317
Specifications
