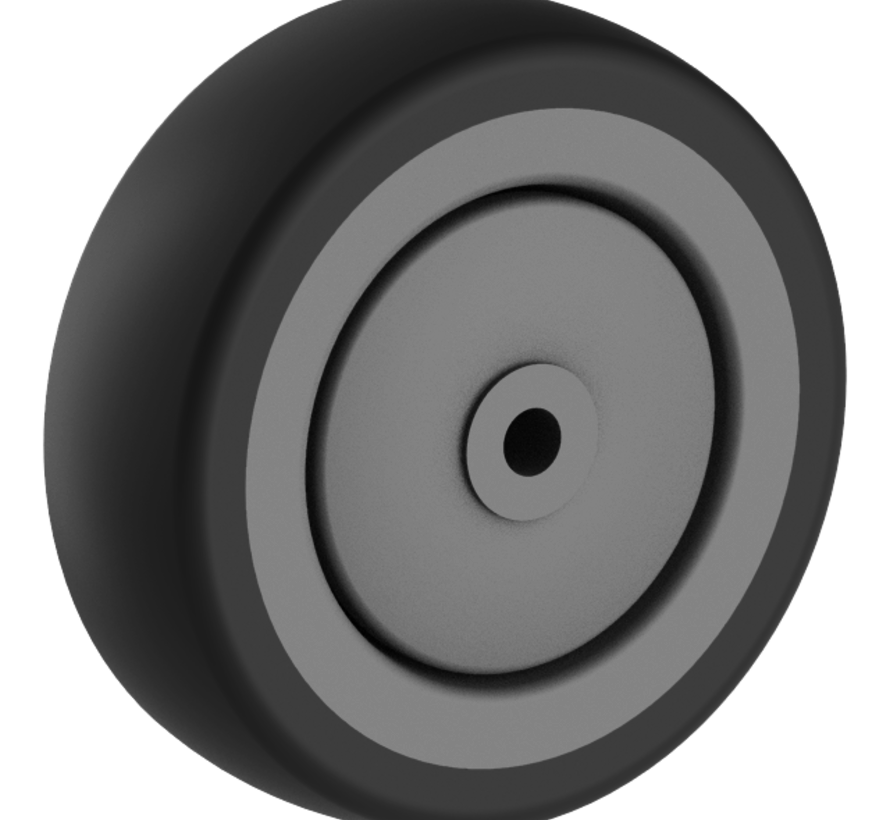

Institutional wheel 100 mm, polypropylene, ball bearing, axle hole 8.3 mm, 85 kg, Art. 2-813-20K

Institutional wheel, 100 mm wheel diameter, solid polypropylene wheel, running on ball bearing. Rated load is 85 kg dynamic, 100 kg static, with a 8.3 mm axle hole.

  • Looking for a castor or wheel for your application? Contact us.
  • Ask us for CAD models in STEP and IGES formats
  • Short delivery times for large quantities of castors
  • Pressing steel OEM parts is our expertise
Download PDF See our factory (opens in a new tab)

You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.

Product description

TypeInstitutional wheel
Wheel diameter100 mm
Wheel width30 mm
Treadsolid polypropylene wheel, 60±5 Shore D
Tread colourgrey
Wheel centrepolypropylene
Bearingball bearing
Load capacity, dynamic85 kg
Load capacity, static100 kg
Axle hole8.3 mm
Weight0.23 kg
Temperature, continuous-20 to +60 °C
FittingWheel hub
Tread hardness60 Shore D

Properties and use

Dust-proof and leaves no trail on the floor. Turns easily. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).

Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.

Specifications from the LIV product database, October 2026.
