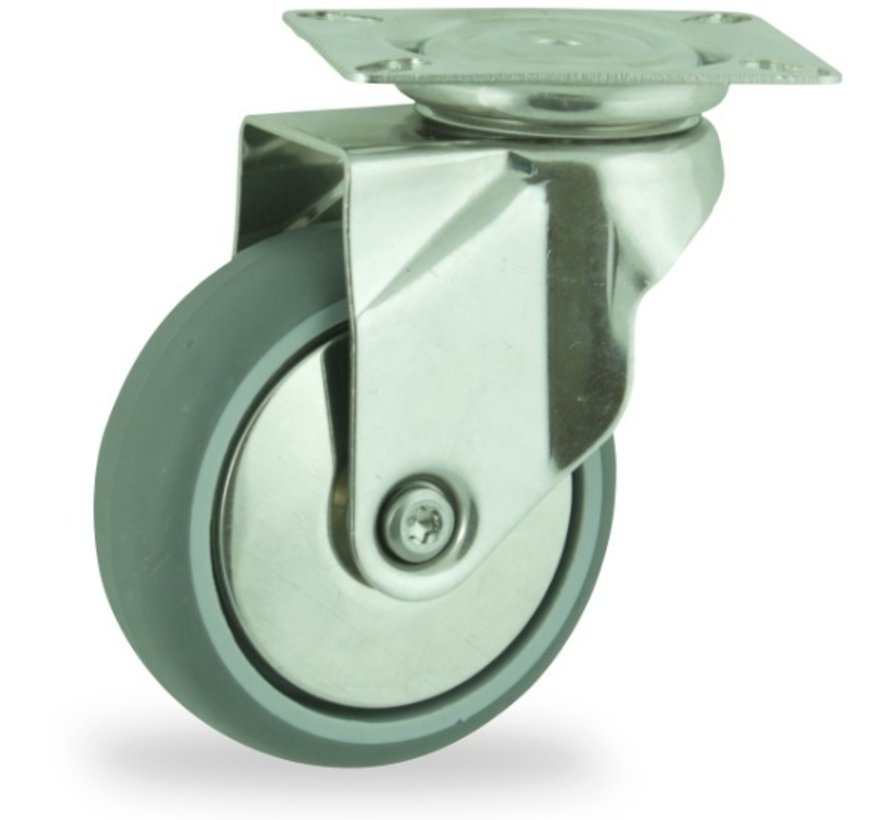

institutianal Swivel castor + polyethylene tread Ø125 x W32mm for 100kg Prod ID: 44818

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

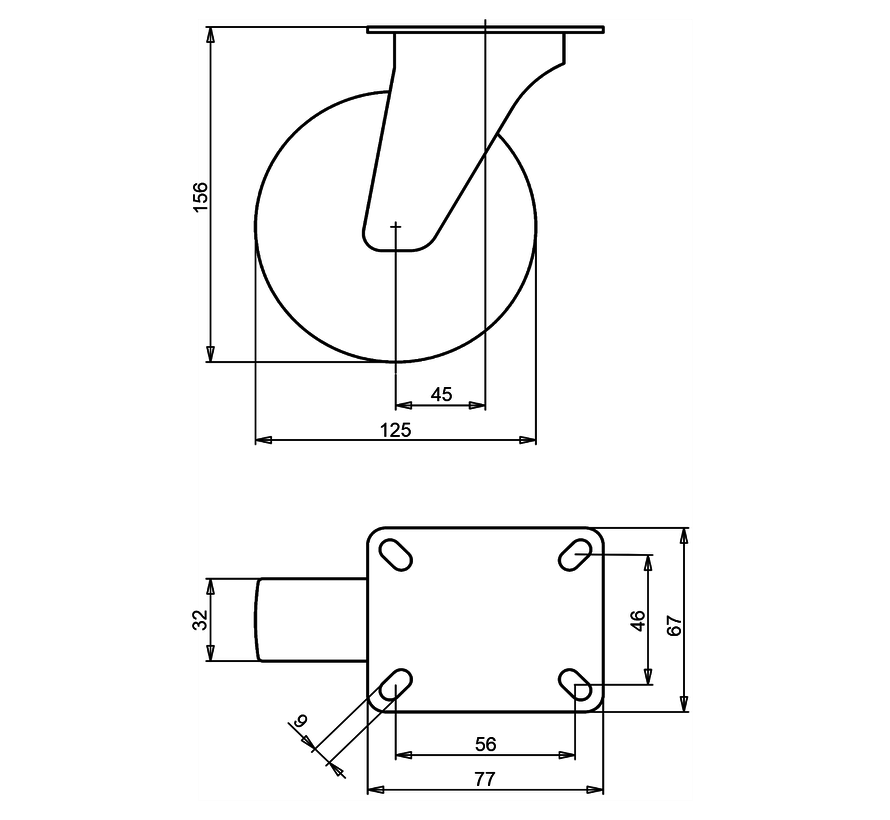

institutianal Swivel castor with an overall height of 156 mm
Wheel diameter x width: 125 x 32 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 56x46 mm and top plate outer dimensions: 77x67 mm
Wheel with ball bearing and polyethylene tread with hardness 82 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 100 kg
Static 120 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Graceful moving Swivel castor:
✓ proof
✓ no marks on the floor
✓ rotation

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS institutianal Swivel castor + polyethylene tread Ø125 x W32mm for 100kg Prod ID: 44818

ID 44818: Castor overall height 156 mm | 4 mounting holes with distance 56x46 mm | Wheel with ball bearing and polyethylene tread with hardness 82 ° Shore A | Graceful moving, dust proof, leaves no marks on the floor, ease rotation
