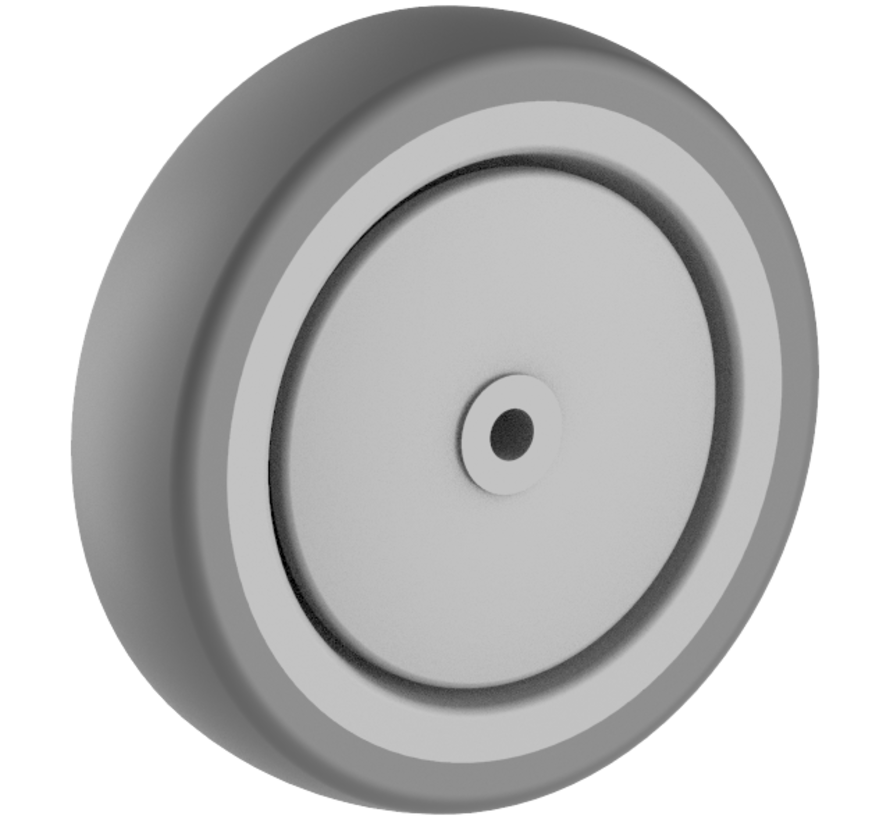

Institutional wheel 125 mm, polypropylene, ball bearing, axle hole 8.3 mm, 100 kg, Art. 2-817-25K
Institutional wheel with solid polypropylene wheel, wheel diameter 125 mm, on ball bearing. It carries 100 kg dynamic and 120 kg static, with a 8.3 mm axle hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Institutional wheel |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 32 mm |
| Tread | solid polypropylene wheel, 60±5 Shore D |
| Tread colour | grey |
| Wheel centre | polypropylene |
| Bearing | ball bearing |
| Load capacity, dynamic | 100 kg |
| Load capacity, static | 120 kg |
| Axle hole | 8.3 mm |
| Weight | 0.4 kg |
| Temperature, continuous | -20 to +60 °C |
| Fitting | Wheel hub |
| Tread hardness | 60 Shore D |
Properties and use
Dust-proof and leaves no trail on the floor. Turns easily. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-817-25K |
|---|---|
| SKU | 44804 |
| EAN | 3838461448041 |
