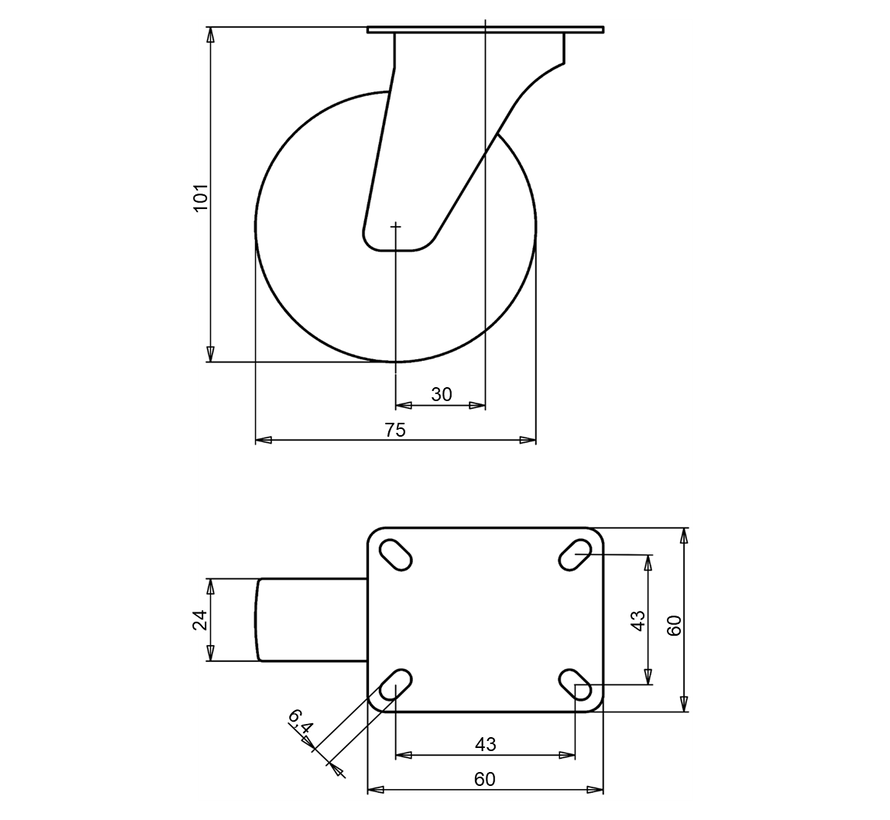

institutianal Swivel castor with an overall height of 101 mm
Wheel diameter x width: 75 x 24 mm
Top plate with 4 mounting holes of 6,4 mm, mounting hole distance 43x43 mm and top plate outer dimensions: 60x60 mm
Wheel with ball bearing and polyethylene tread with hardness 82 ° Shore A on polypropylene.
Approved and tested load capacity
Dynamic 60 kg
Static 70 kg
Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Graceful moving Swivel castor:
✓ proof
✓ no marks on the floor
✓ rotation

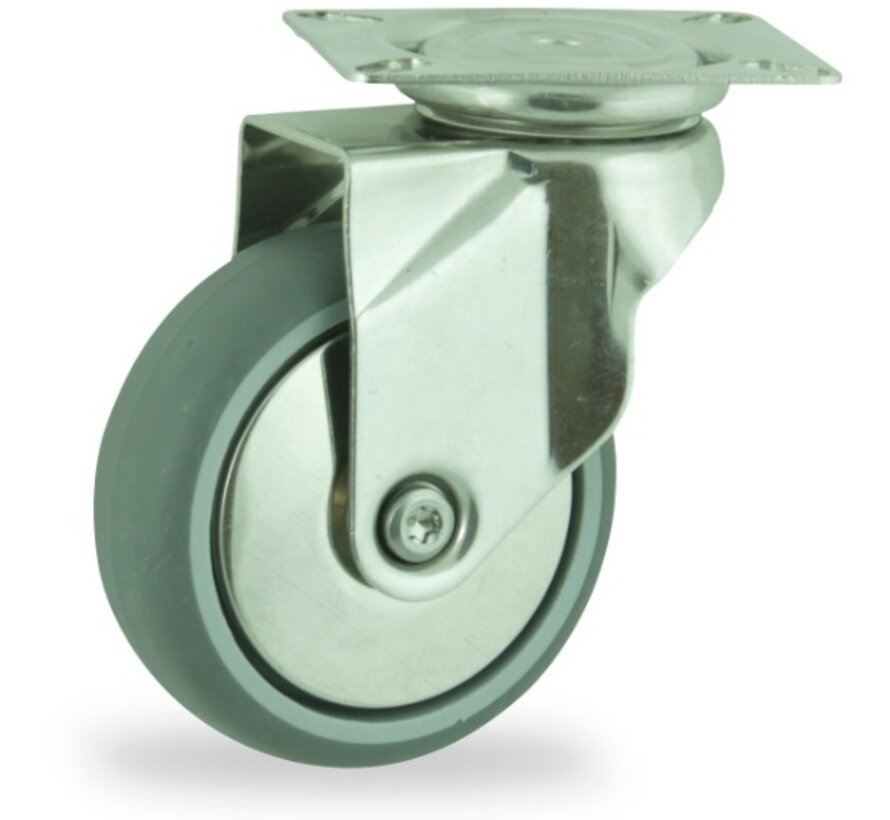

institutianal Swivel castor + polyethylene tread Ø75 x W24mm for 60kg Prod ID: 44815
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-7PG-15K
- SKU 44815
- EAN 3838461448157
Specifications
