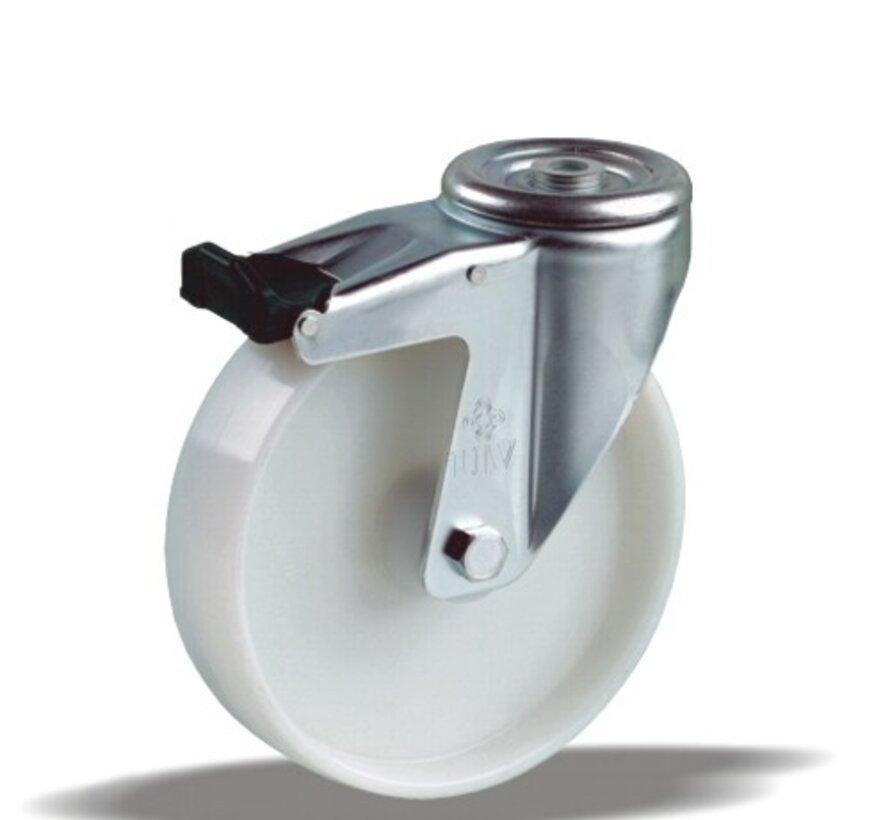

standard Swivel castor with brake + solid polyamide wheel Ø100 x W35mm for 200kg Prod ID: 42885

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Swivel castor with brake with an overall height of 128 mm
Wheel diameter x width: 100 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with ball bearing and solid polyamide wheel with hardness 70±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Glide through the hall Swivel castor with brake:
✓ chemical resistance
✓ load capacity and shock impact resistant
✓ high temperature shifts

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor with brake + solid polyamide wheel Ø100 x W35mm for 200kg Prod ID: 42885

ID 42885: Castor overall height 128 mm | 4 mounting holes with distance #$% mm | Wheel with ball bearing and solid polyamide wheel with hardness 70±5 Shore D | The double brake system, brakes the turning of the wheel and the swivel rotation. | Glide thro
