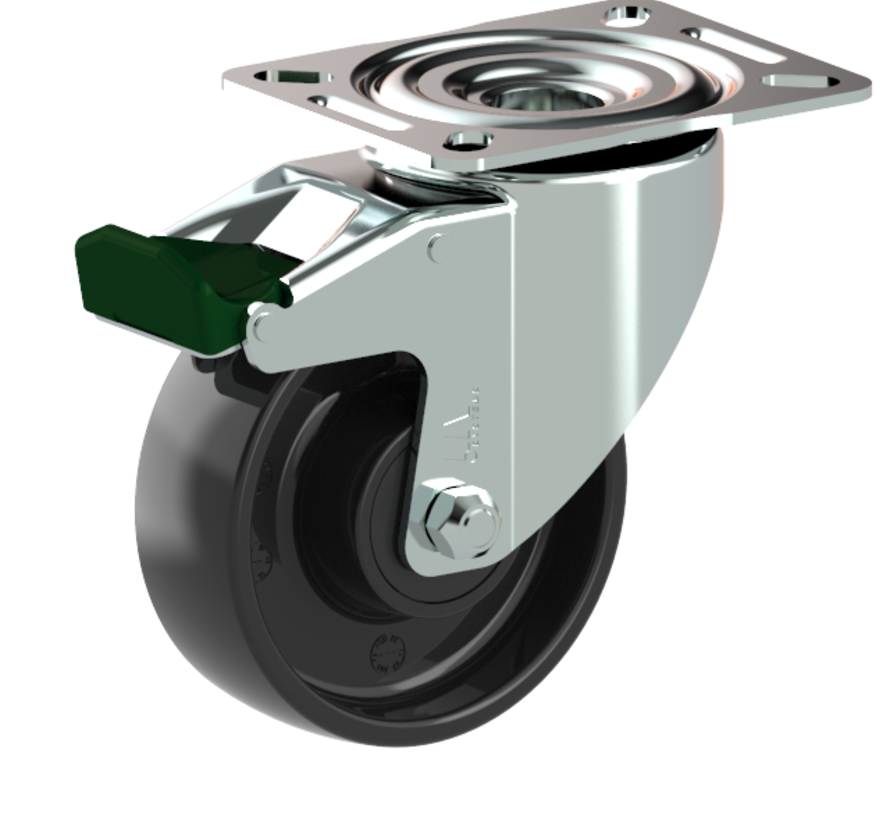

standard Swivel castor with brake + solid polypropylene wheel Ø100 x W38mm for 200kg Prod ID: 42815

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

standard Swivel castor with brake with an overall height of 128 mm
Wheel diameter x width: 100 x 38 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with ball bearing and solid polypropylene wheel with hardness 60±5 Shore D
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -20 | +60°C
Short (10 min) exposure: /°C

Advantages of this Long floor drive Swivel castor with brake:
✓ acidic environment
✓ wear off
✓ rolling resistance

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor with brake + solid polypropylene wheel Ø100 x W38mm for 200kg Prod ID: 42815

ID 42815: Castor overall height 128 mm | 4 mounting holes with distance 80x60 mm | Wheel with ball bearing and solid polypropylene wheel with hardness 60±5 Shore D | The double brake system, brakes the turning of the wheel and the swivel rotation. | Long

Quantity

You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
Ask us for CAD/STEP/Iges Models
Fastest delivery of high quantities of castors possible
Press forming steel OEM parts is our expetise
