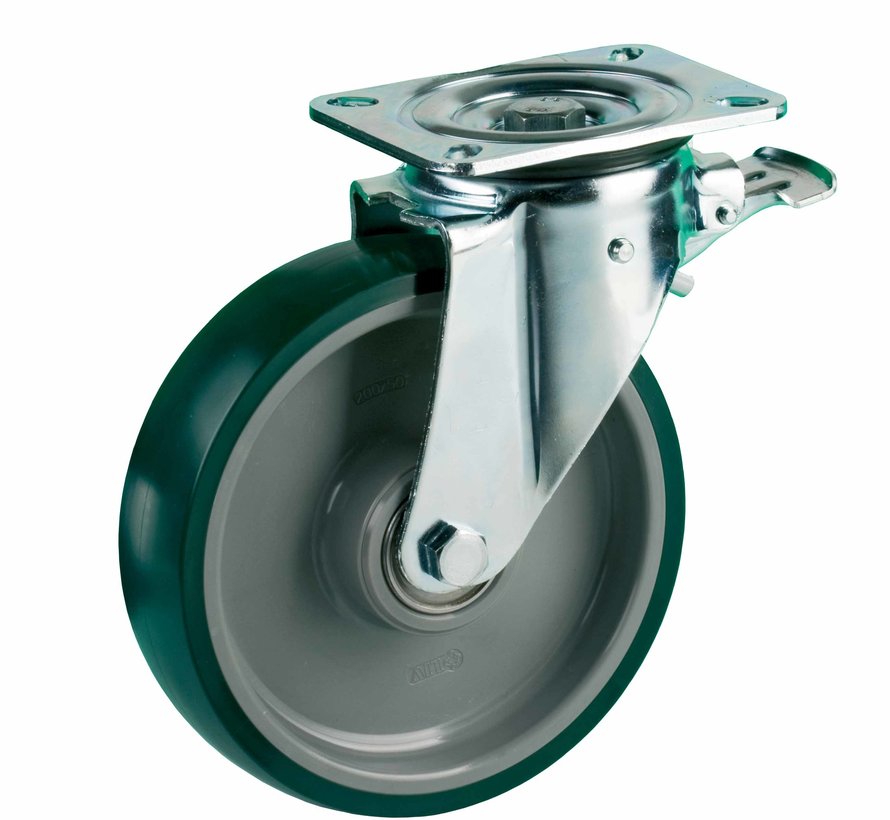

heavy duty Swivel castor with brake with an overall height of 240 mm
Wheel diameter x width: 200 x 50 mm

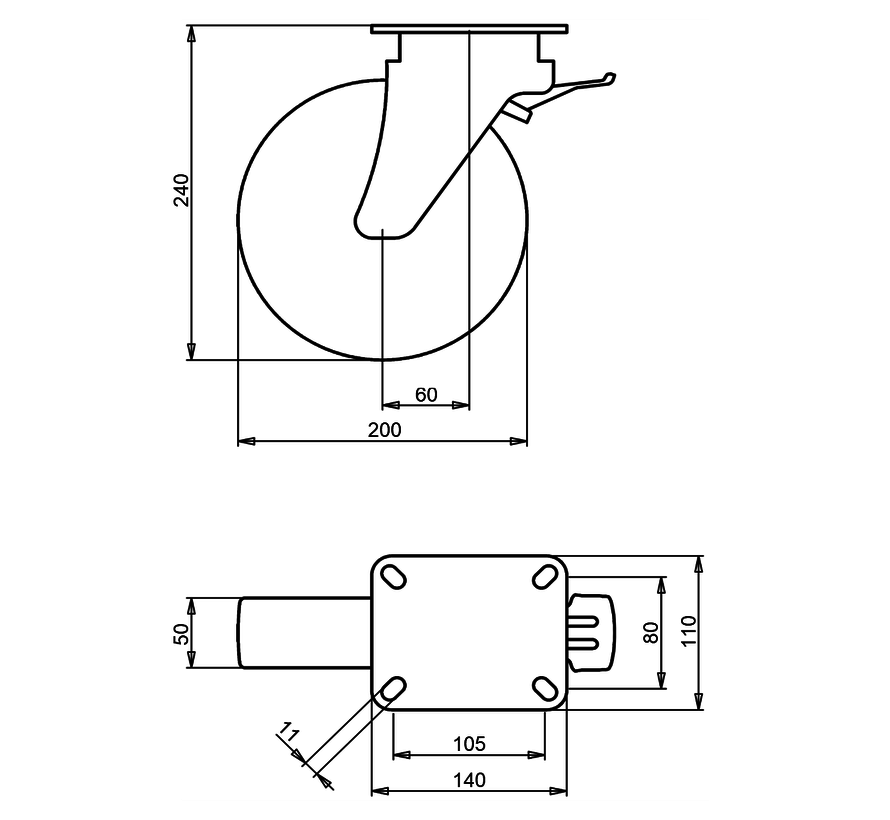

Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with roller bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 500 kg
Static 620 kg
Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C
Advantages of this Power ride Swivel castor with brake:
✓ chemical resistance
✓ surface pressure
✓ force to start
heavy duty Swivel castor with brake + injection-moulded polyurethane tread Ø200 x W50mm for 500kg Prod ID: 42613
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-083-40V
- SKU 42613
- EAN 3838461426131
Specifications
