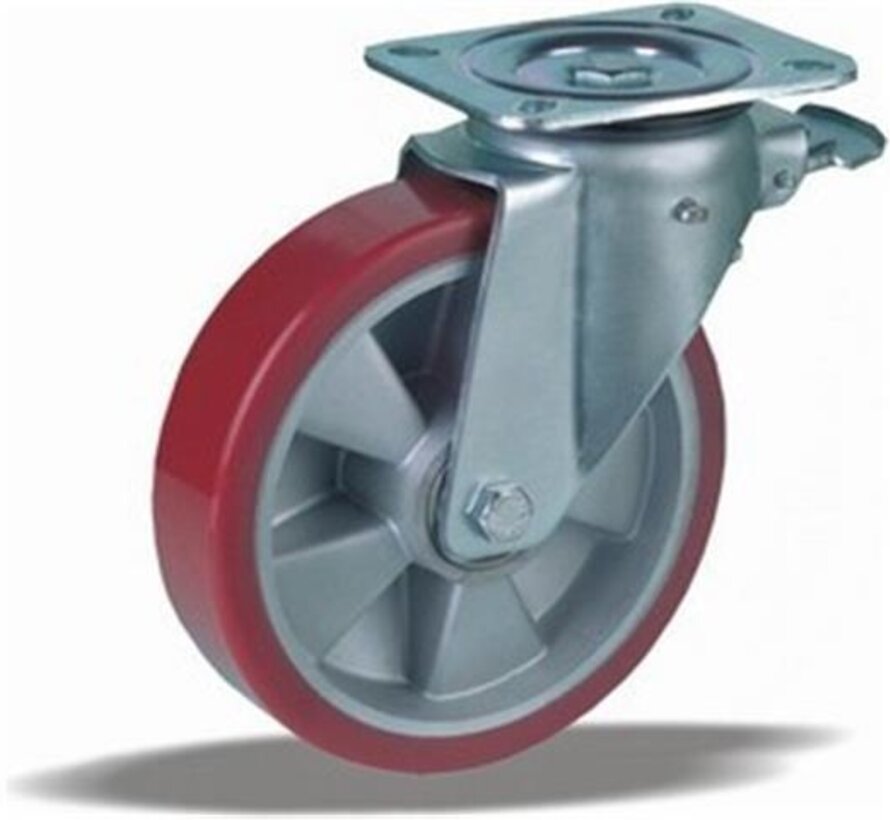

heavy duty Swivel castor with brake + injection-moulded polyurethane tread Ø200 x W50mm for 600kg Prod ID: 42415

heavy duty Swivel castor with brake with an overall height of 240 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 140x110 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on aluminium
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 600 kg
Static 750 kg

Temperature range:
Continious operation: -25 | -55°C
Short (10 min) exposure: -40 | +55°C



Advantages of this Indestructable footing Swivel castor with brake:
✓ burden transport
✓ resistance
✓ own weight
