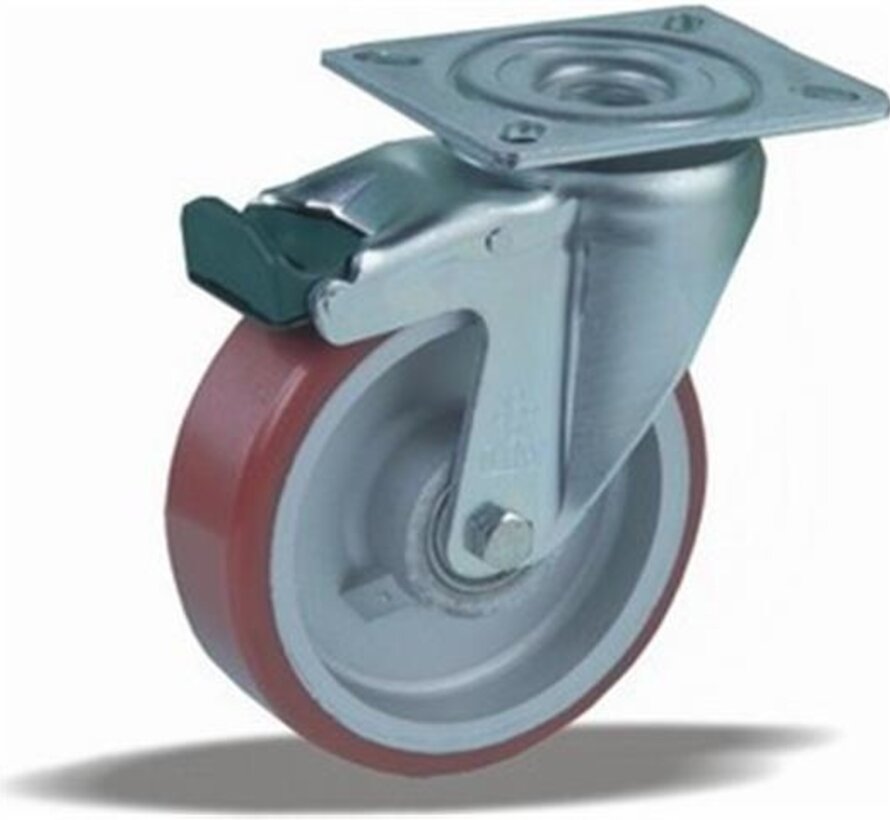

heavy duty Swivel castor with brake with an overall height of 155 mm
Wheel diameter x width: 125 x 40 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on aluminium
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 300 kg
Static 370 kg
Temperature range:
Continious operation: -25 | -55°C
Short (10 min) exposure: -40 | +55°C
Advantages of this Indestructable footing Swivel castor with brake:
✓ burden transport
✓ resistance
✓ own weight
heavy duty Swivel castor with brake + injection-moulded polyurethane tread Ø125 x W40mm for 300kg Prod ID: 42413
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-123-25K
- SKU 42413
- EAN 3838461424137
Specifications
- Wheel diameter 125 mm
- Wheel width 40 mm
- Load capacity at 4 km/h 300 kg
- Static load capacity 370 kg
- Total height 155 mm
- Fitting Top plate
- Top plate size 105 x 85 mm
- Hole spacing 80 x 60 mm
- Bolt hole Ø 9 mm
- Offset 40 mm
- Bearing Ball bearing
- Tread material Injection-moulded polyurethane
- Tread hardness 92 Shore A
- Wheel centre Aluminium
- Brake Total brake
- Temperature range -25 to +55 °C
- Weight 1.35 kg
