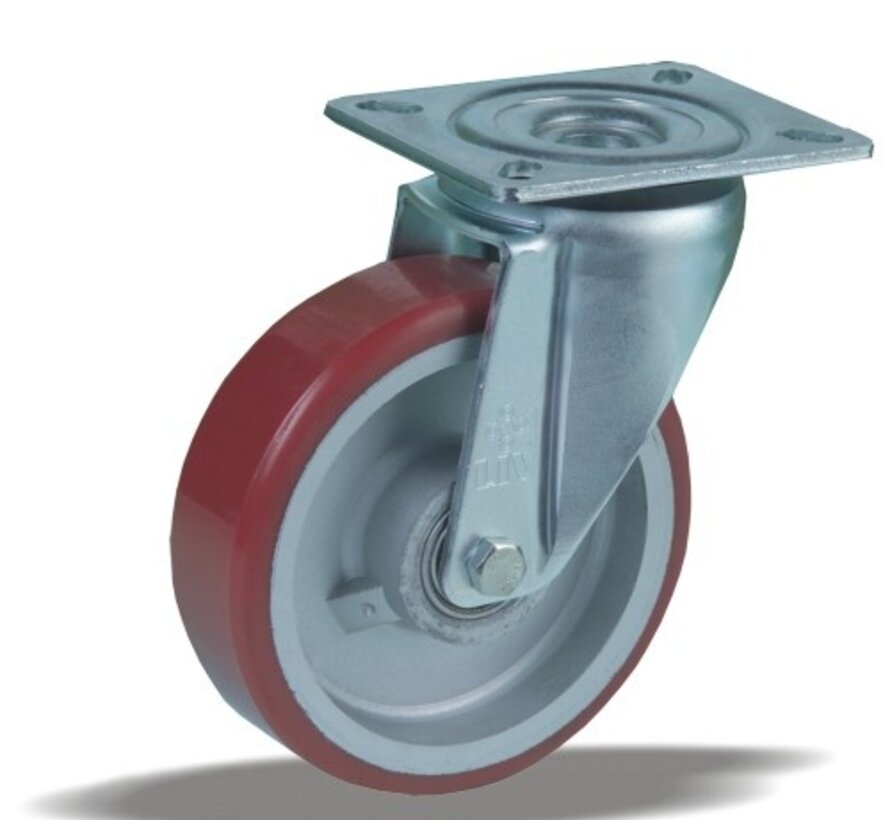

heavy duty Swivel castor + injection-moulded polyurethane tread Ø125 x W40mm for 300kg Prod ID: 42395

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

heavy duty Swivel castor with an overall height of 155 mm
Wheel diameter x width: 125 x 40 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on aluminium.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -25 | -55°C
Short (10 min) exposure: -40 | +55°C

Advantages of this Indestructable footing Swivel castor:
✓ burden transport
✓ resistance
✓ own weight

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS heavy duty Swivel castor + injection-moulded polyurethane tread Ø125 x W40mm for 300kg Prod ID: 42395

ID 42395: Castor overall height 155 mm | 4 mounting holes with distance 80x60 mm | Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A | Indestructable footing, effortless burden transport, chemical resistance, low
