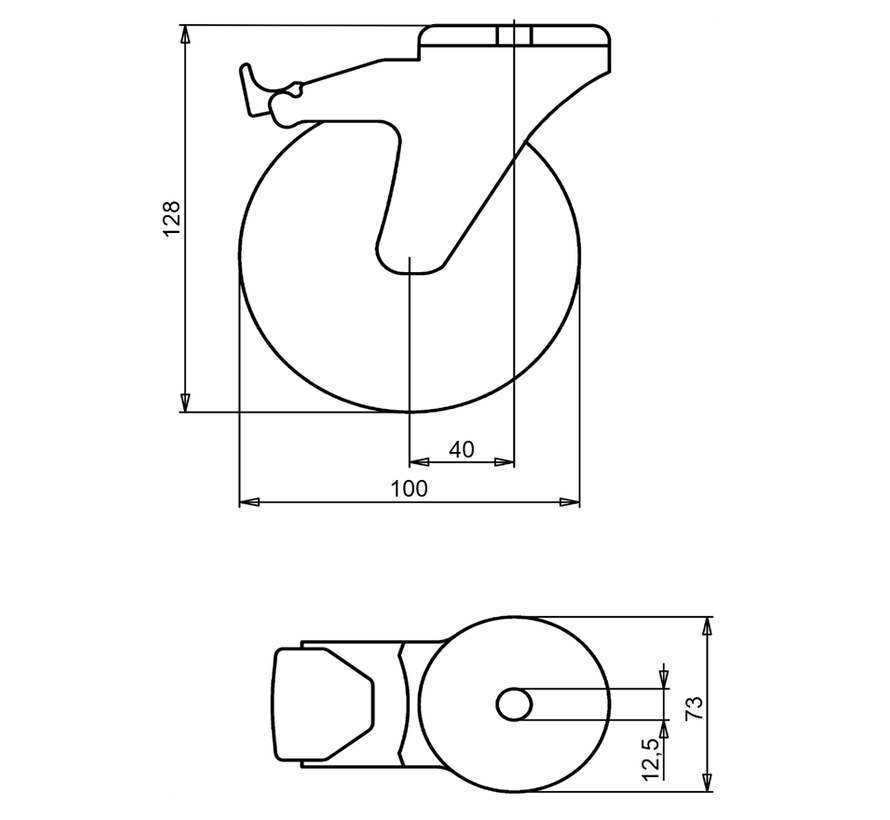

stainless steel Swivel castor with brake with an overall height of 128 mm
Wheel diameter x width: 100 x 32 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 73 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 150 kg
Static 180 kg
Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C
Advantages of this No trail highway drive Swivel castor with brake:
✓ deformation if rarely moved
✓ range of temperatures
✓ resistant
stainless steel Swivel castor with brake + injection-moulded polyurethane tread Ø100 x W32mm for 150kg Prod ID: 42205
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-055-20K
- SKU 42205
- EAN 3838461422058
Specifications
