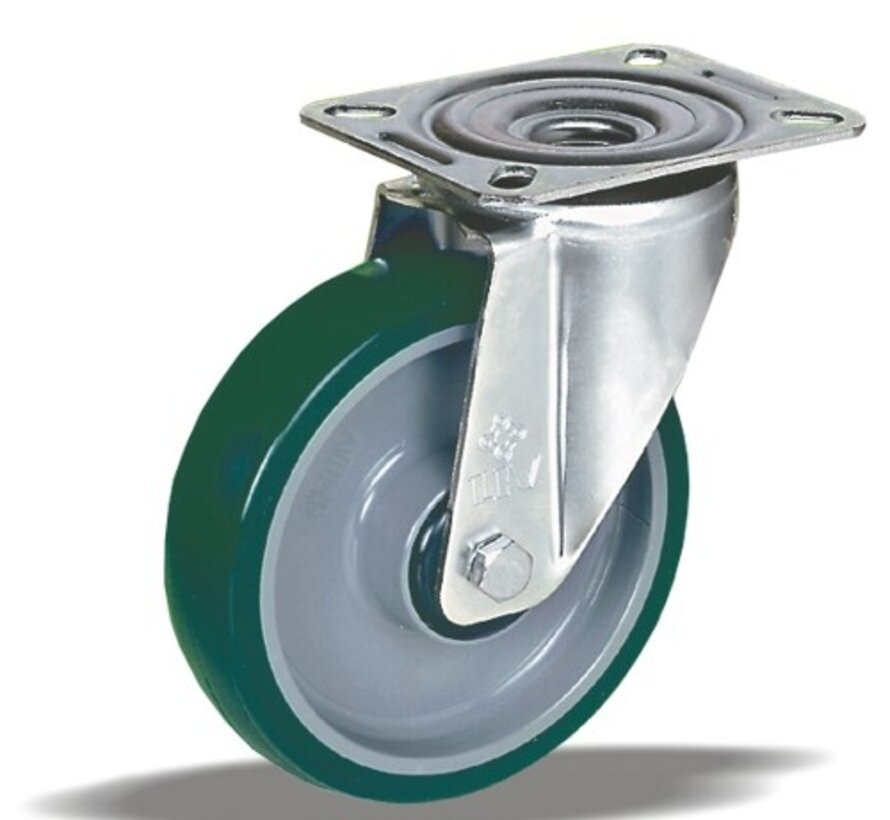

stainless steel Swivel castor with an overall height of 190 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with ball bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on polyamide.
Approved and tested load capacity
Dynamic 300 kg
Static 370 kg
Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C
Advantages of this No trail highway drive Swivel castor:
✓ deformation if rarely moved
✓ range of temperatures
✓ resistant
stainless steel Swivel castor + injection-moulded polyurethane tread Ø160 x W50mm for 300kg Prod ID: 42174
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-052-32K
- SKU 42174
- EAN 3838461421747
Specifications
