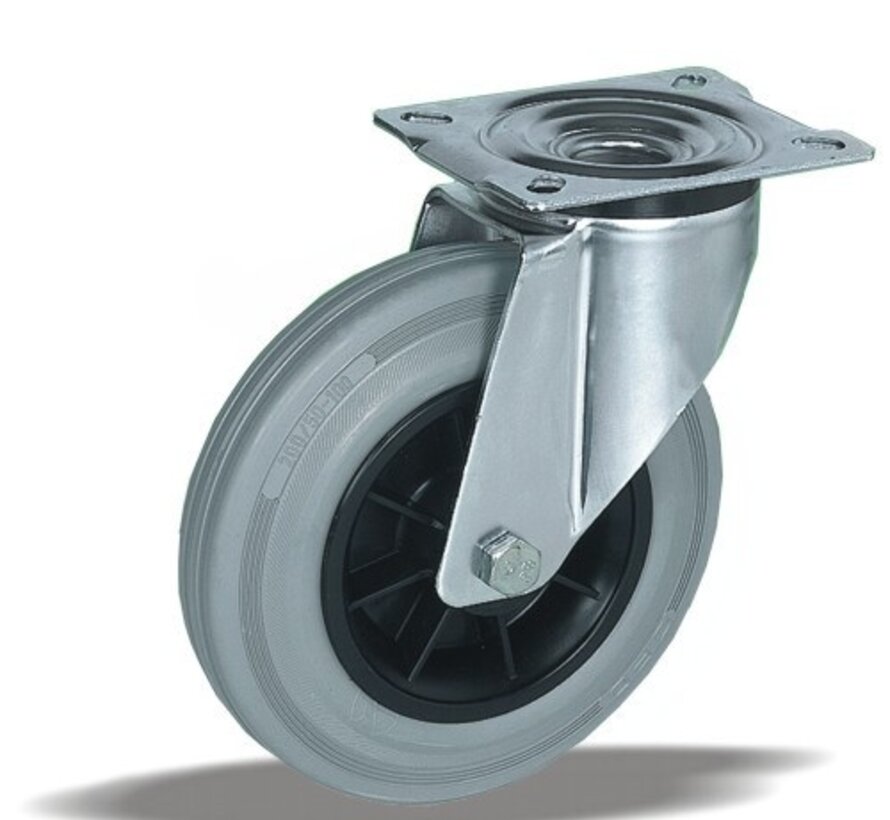

stainless steel Swivel castor + grey rubber tyre Ø160 x W40mm for 180kg Prod ID: 41873

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

stainless steel Swivel castor with an overall height of 190 mm
Wheel diameter x width: 160 x 40 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and grey rubber tyre with hardness 83 ° shore A on polypropylene.

Approved and tested load capacity
Dynamic 180 kg
Static 220 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Floor floor turns Swivel castor:
✓ preservation
✓ and steam proof
✓ obstacle smooth pass

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor + grey rubber tyre Ø160 x W40mm for 180kg Prod ID: 41873

ID 41873: Castor overall height 190 mm | 4 mounting holes with distance 105x80 mm | Wheel with plain bearing and grey rubber tyre with hardness 83 ° shore A | Floor floor turns, floor preservation, wet and steam proof, low obstacle smooth pass

Quantity

You need Innovative & durable wheel solutions? contact us Tooltip The result of our quality is maximum performance!
Ask us for CAD/STEP/Iges Models
Fastest delivery of high quantities of castors possible
Press forming steel OEM parts is our expetise
