stainless steel Swivel castor + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 41613

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

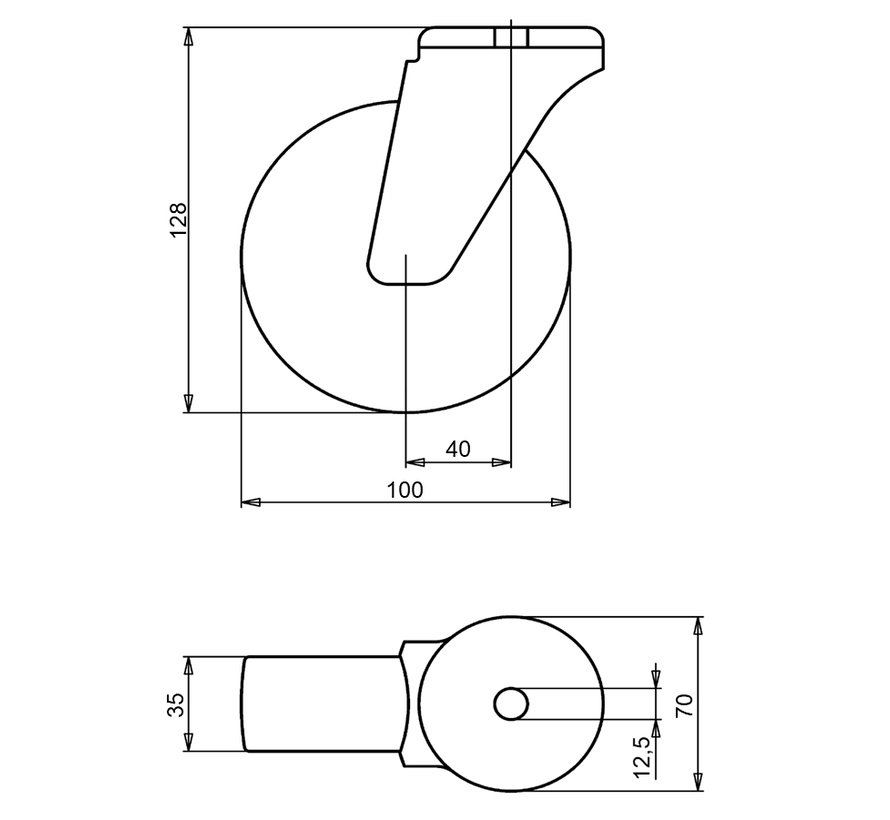

stainless steel Swivel castor with an overall height of 128 mm
Wheel diameter x width: 100 x 35 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with plain bearing and elastic rubber tyre with hardness 70 ° Shore A on polyamide.

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Tile floor ride Swivel castor:
✓ absorbing
✓ ride over obstacles
✓ to keep clean

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Swivel castor + elastic rubber tyre Ø100 x W35mm for 150kg Prod ID: 41613

ID 41613: Castor overall height 128 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and elastic rubber tyre with hardness 70 ° Shore A | Tile floor ride, shock absorbing, smooth ride over obstacles, easy to keep clean
