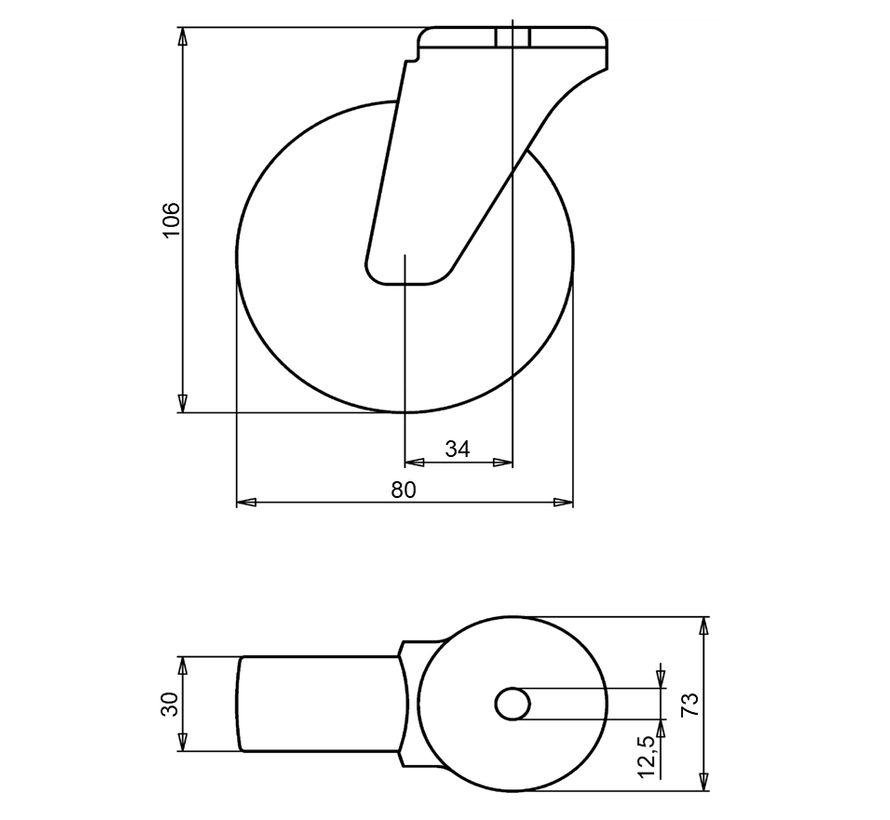

stainless steel Swivel castor with an overall height of 106 mm
Wheel diameter x width: 80 x 30 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 73 mm
Wheel with plain bearing and grey rubber tyre with hardness 83 ° shore A on polypropylene.
Approved and tested load capacity
Dynamic 65 kg
Static 80 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Floor floor turns Swivel castor:
✓ preservation
✓ and steam proof
✓ obstacle smooth pass

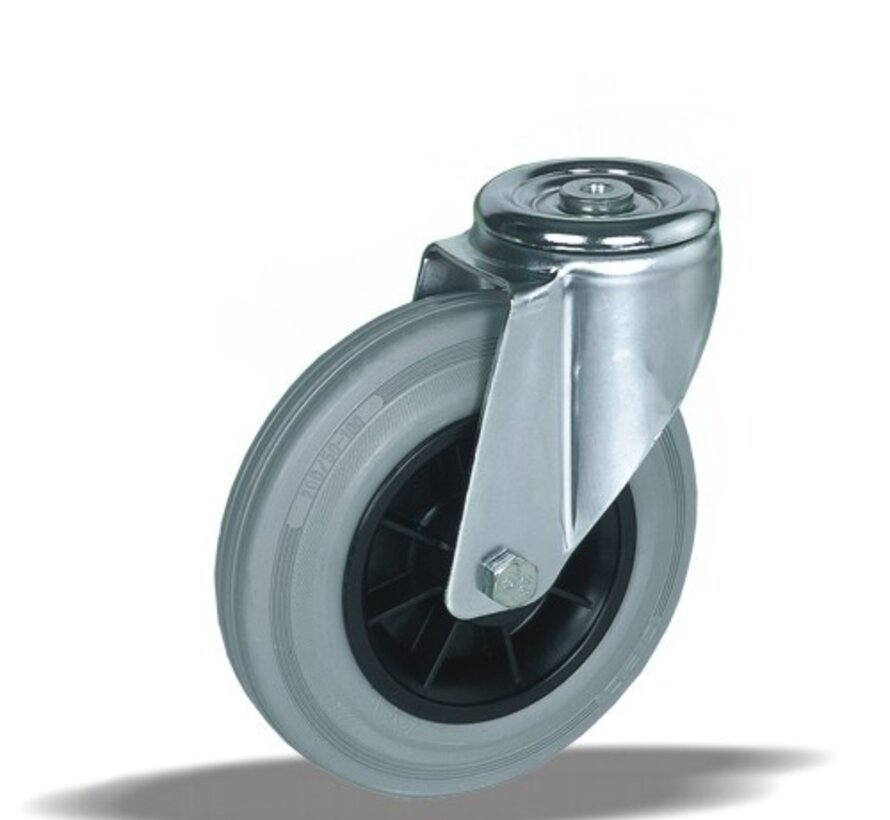

stainless steel Swivel castor + grey rubber tyre Ø80 x W30mm for 65kg Prod ID: 41533
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-972 L12
- SKU 41533
- EAN 3838461415333
Specifications
