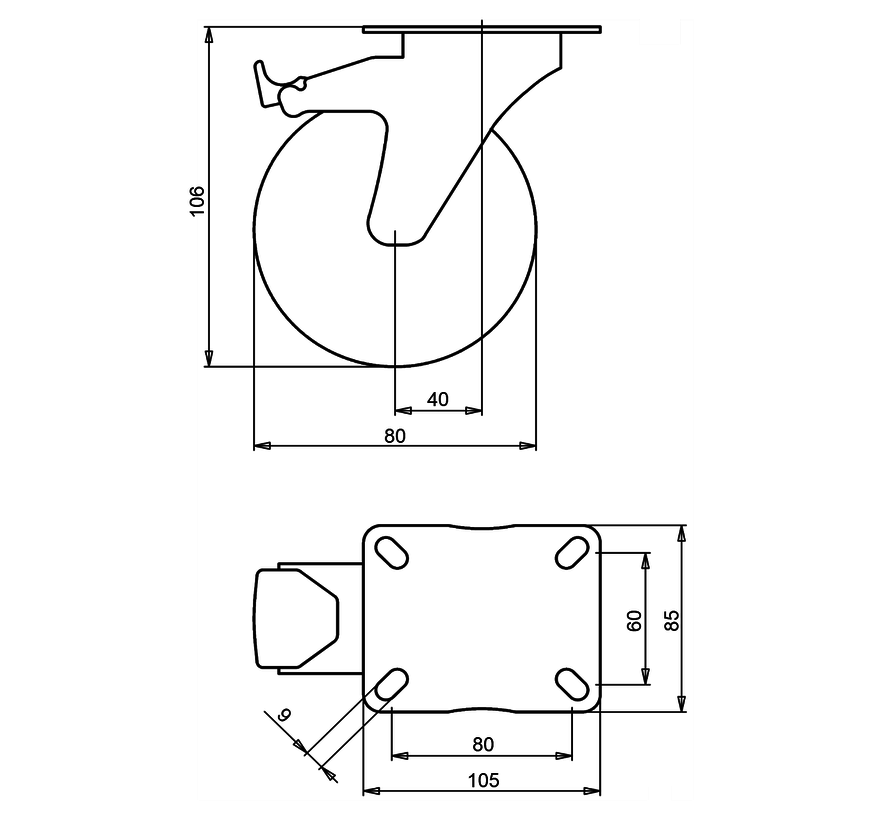

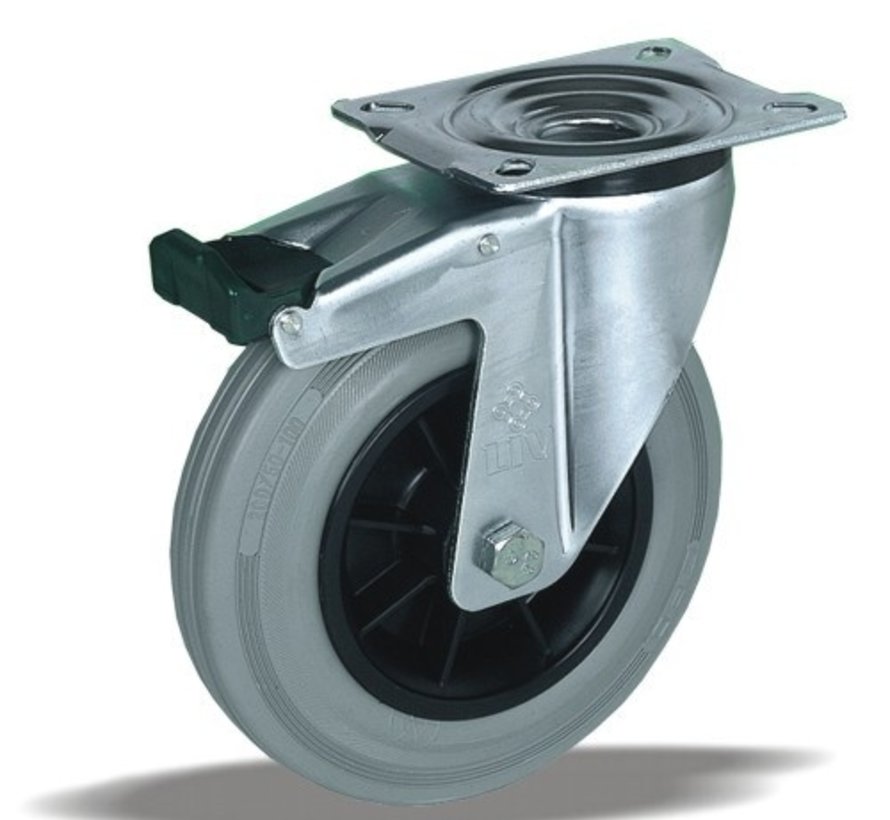

stainless steel Swivel castor with brake with an overall height of 106 mm
Wheel diameter x width: 80 x 30 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with roller bearing and grey rubber tyre with hardness 83 ° shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 65 kg
Static 80 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Floor floor turns Swivel castor with brake:
✓ preservation
✓ and steam proof
✓ obstacle smooth pass
stainless steel Swivel castor with brake + grey rubber tyre Ø80 x W30mm for 65kg Prod ID: 41505
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-928 ISO
- SKU 41505
- EAN 3838461415050
Specifications
