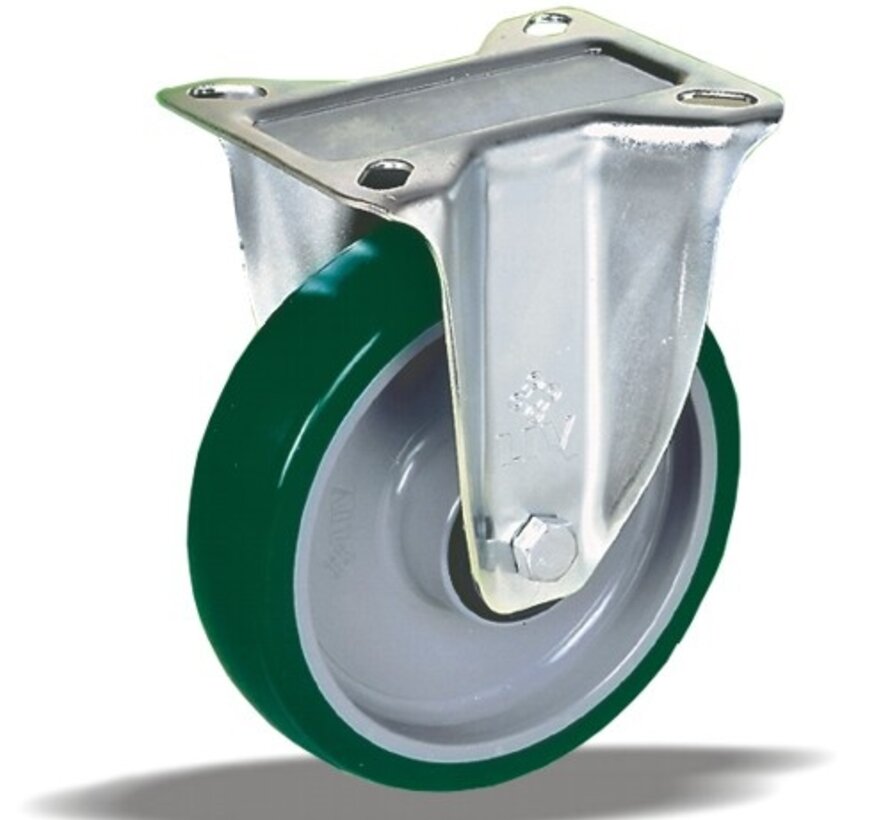

stainless steel Fixed castor + injection-moulded polyurethane tread Ø125 x W32mm for 200kg Prod ID: 41363

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

stainless steel Fixed castor with an overall height of 155 mm
Wheel diameter x width: 125 x 32 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with plain bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on polyamide.

Approved and tested load capacity
Dynamic 200 kg
Static 250 kg

Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C

Advantages of this No trail highway drive Fixed castor:
✓ deformation if rarely moved
✓ range of temperatures
✓ resistant

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS stainless steel Fixed castor + injection-moulded polyurethane tread Ø125 x W32mm for 200kg Prod ID: 41363

ID 41363: Castor overall height 155 mm | 4 mounting holes with distance 80x60 mm | Wheel with plain bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A | No trail highway drive, low deformation if rarely moved, wide range of temper
