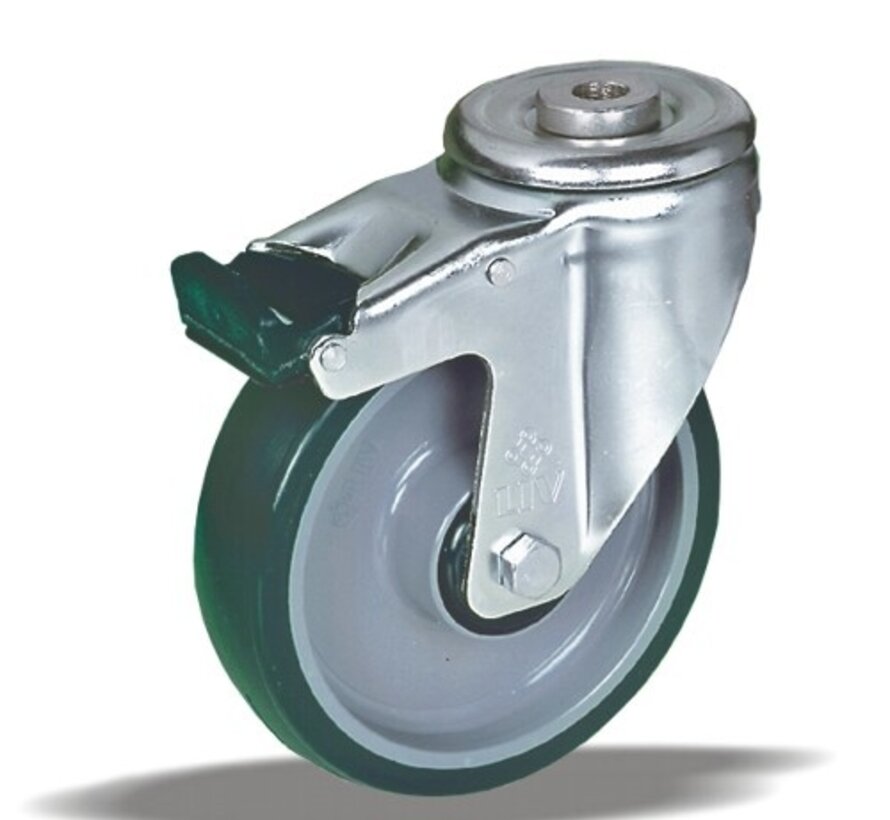

standard Swivel castor with brake + injection-moulded polyurethane tread Ø100 x W32mm for 150kg Prod ID: 41183

standard Swivel castor with brake with an overall height of 128 mm
Wheel diameter x width: 100 x 32 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with plain bearing and injection-moulded polyurethane tread with hardness 92 ° Shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 150 kg
Static 180 kg

Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C



Advantages of this Power ride Swivel castor with brake:
✓ chemical resistance
✓ surface pressure
✓ force to start
