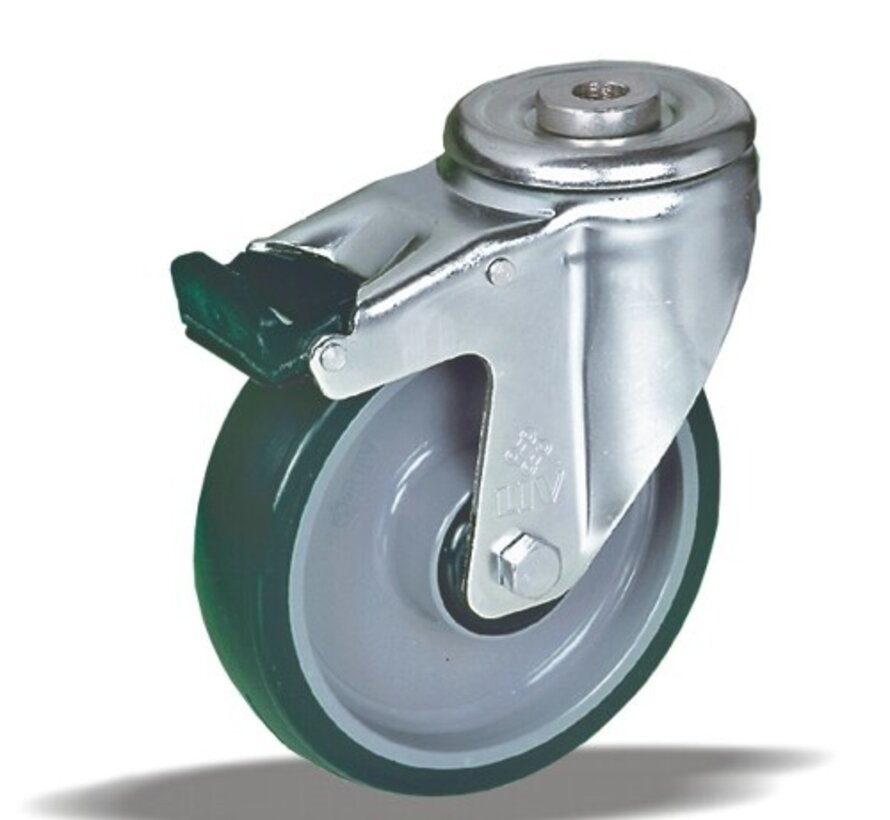

standard Swivel castor with brake + injection-moulded polyurethane Ø160 x W50mm for 300kg Prod ID: 40635

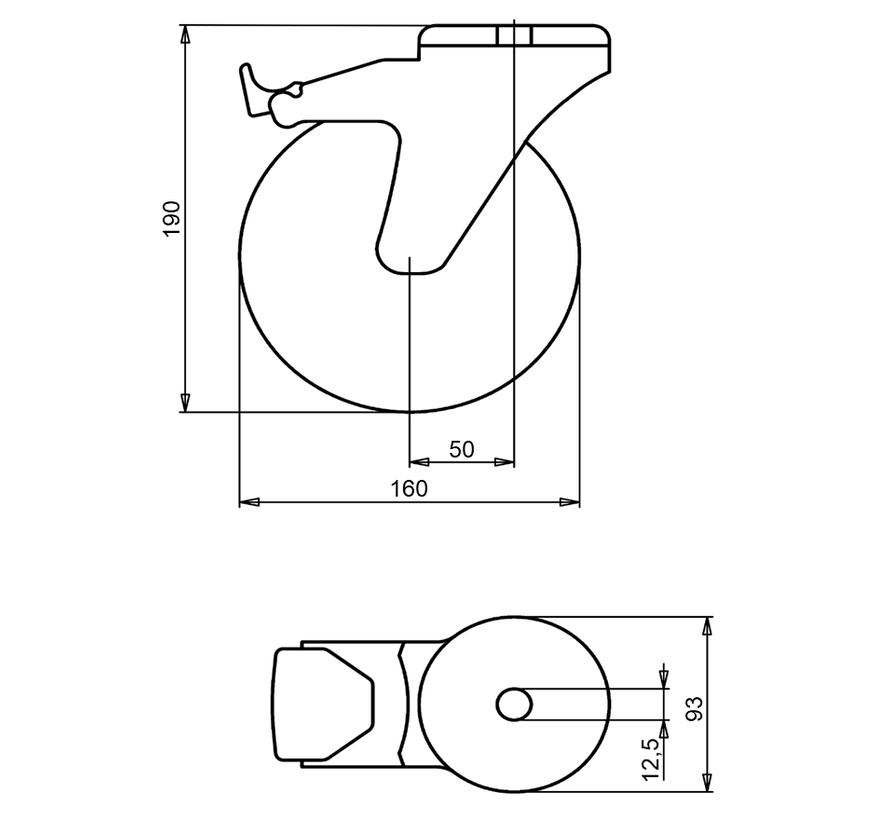

standard Swivel castor with brake with an overall height of 190 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with roller bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -20 | +80°C
Short (10 min) exposure: -40 | +100°C



Advantages of this Jump floor champion Swivel castor with brake:
✓ stoney floor
✓-proof
✓ high temperature differences
