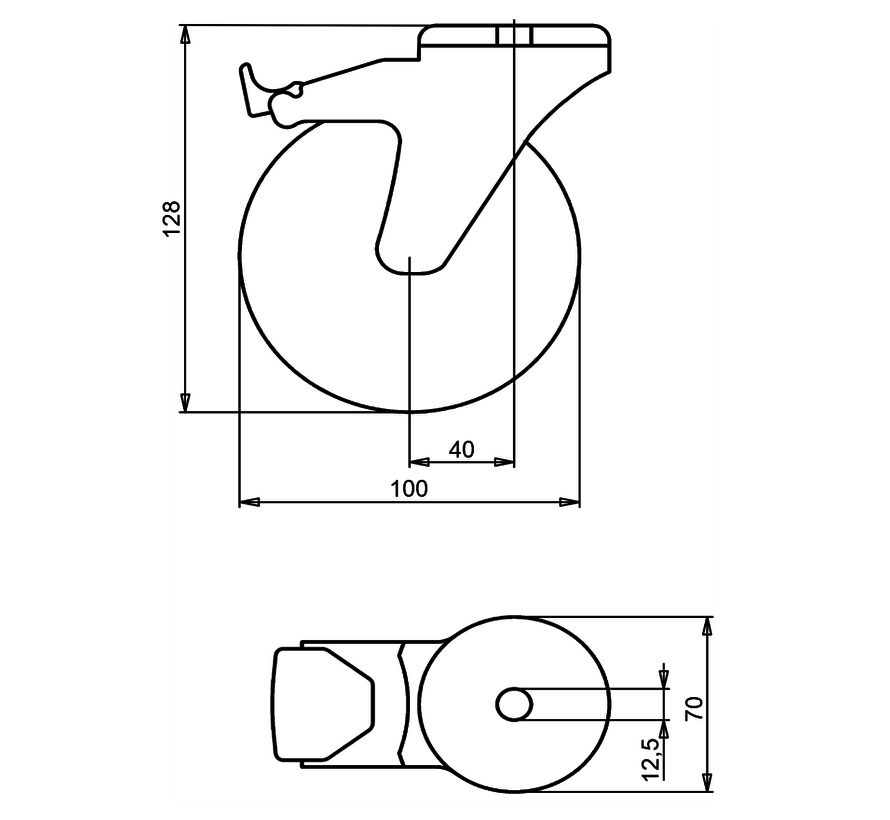

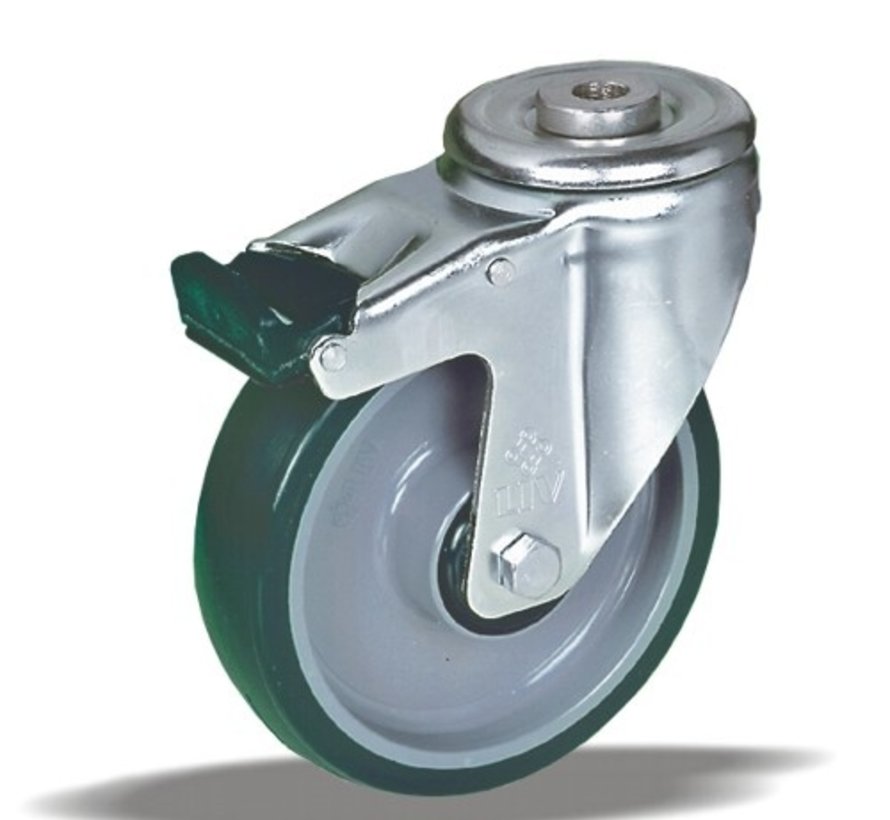

Swivel castor with total brake 100 mm, polyurethane, plain bearing, bolt hole 12.5 mm, 150 kg, Art. 2-055-20D
Swivel castor with total brake with a 100 mm wheel, polyurethane tread, on plain bearing. It carries 150 kg dynamic and 180 kg static, fixed with a 12.5 mm bolt hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Swivel castor with total brake |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Tread | polyurethane tread, 92 Shore A |
| Tread colour | green |
| Wheel centre | polyamide |
| Bearing | plain bearing |
| Load capacity, dynamic | 150 kg |
| Load capacity, static | 180 kg |
| Fitting | single bolt hole |
| Hole diameter | 12.5 mm |
| Overall height | 128 mm |
| Offset | 40 mm |
| Brake | total brake (locks wheel and swivel) |
| Weight | 0.83 kg |
| Temperature, continuous | -20 to +80 °C |
| Temperature, short exposure (max. 10 min) | -40 to +100 °C |
| Top plate size | 70 mm |
| Tread material | Injection-moulded polyurethane |
Fork zinc electroplated and Cr(VI)-free.
Properties and use
The polyurethane tread resists cuts and suits stony floors. It tolerates large temperature differences. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-055-20D |
|---|---|
| SKU | 40614 |
| EAN | 3838461406140 |
