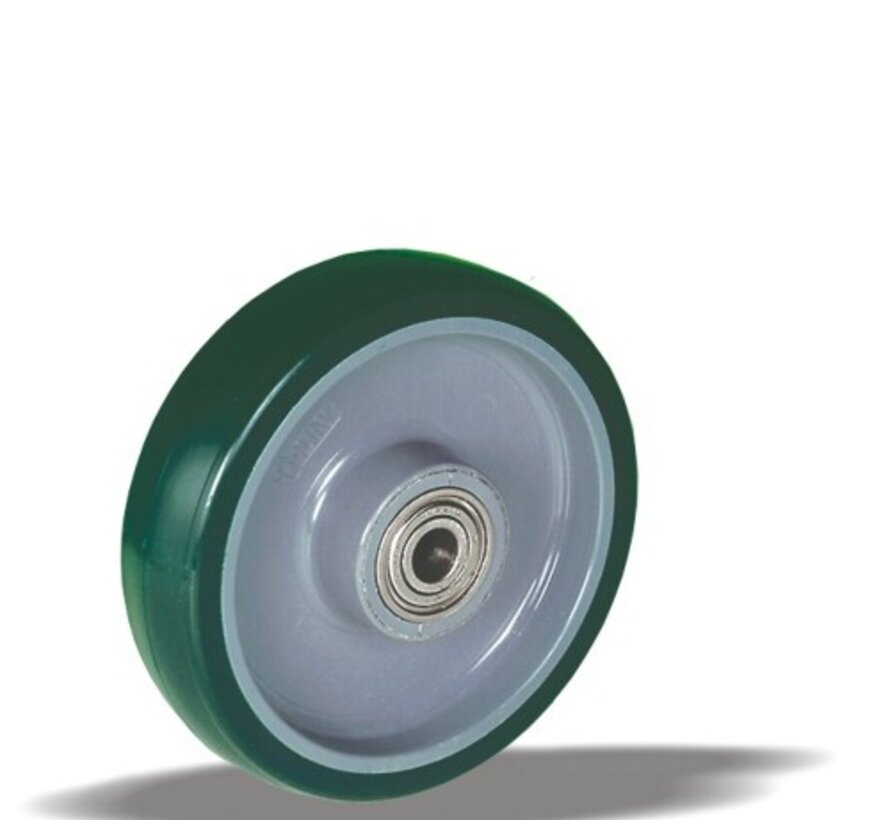

Wheel 100 mm, polyurethane, ball bearing, axle hole 12 mm, 150 kg, Art. 2-050-20K
Wheel, 100 mm wheel diameter, polyurethane tread, running on ball bearing. Rated load is 150 kg dynamic, 180 kg static, with a 12 mm axle hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
Download PDF
See our factory (opens in a new tab)
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Wheel |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 32 mm |
| Tread | polyurethane tread, 92 Shore A |
| Tread colour | green |
| Wheel centre | polyamide |
| Bearing | ball bearing |
| Load capacity, dynamic | 150 kg |
| Load capacity, static | 180 kg |
| Axle hole | 12 mm |
| Weight | 0.3 kg |
| Temperature, continuous | -25 to +55 °C |
| Temperature, short exposure (max. 10 min) | -30 to +55 °C |
| Fitting | Wheel hub |
| Hub length | 44 mm |
| Tread material | Injection-moulded polyurethane |
Properties and use
The polyurethane tread resists cuts and suits stony floors. It tolerates large temperature differences. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-050-20K |
|---|---|
| SKU | 40423 |
| EAN | 3838461404238 |
