standard Fixed castor with an overall height of 128 mm
Wheel diameter x width: 100 x 32 mm
Top plate with 4 mounting holes of 9 mm, mounting hole distance 80x60 mm and top plate outer dimensions: 105x85 mm
Wheel with ball bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide.
Approved and tested load capacity
Dynamic 150 kg
Static 180 kg
Temperature range:
Continious operation: -20 | +80°C
Short (10 min) exposure: -40 | +100°C
Advantages of this Jump floor champion Fixed castor:
✓ stoney floor
✓-proof
✓ high temperature differences

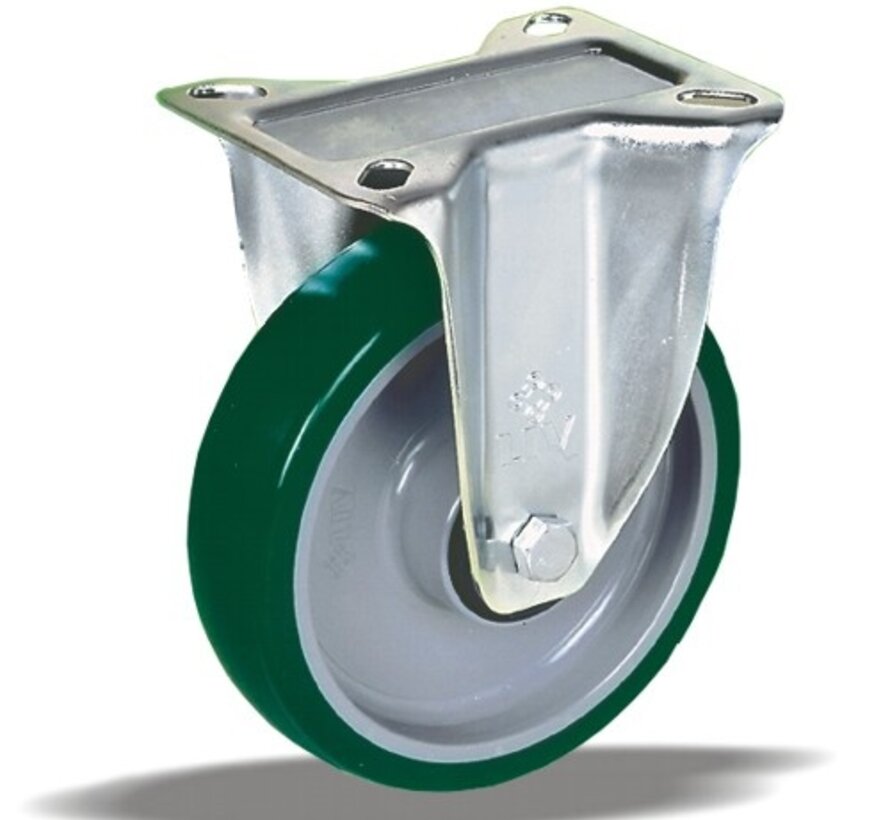

standard Fixed castor + injection-moulded polyurethane Ø100 x W32mm for 150kg Prod ID: 40463
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-051-20K
- SKU 40463
- EAN 3838461404634
Specifications
