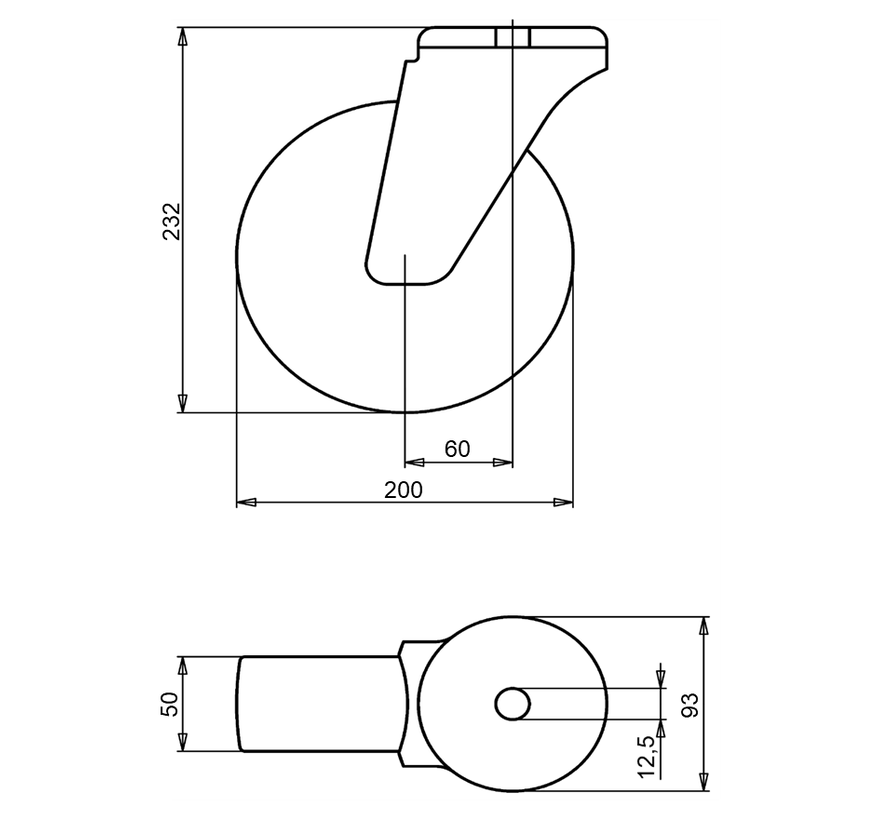

standard Swivel castor with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with roller bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide.
Approved and tested load capacity
Dynamic 300 kg
Static 370 kg
Temperature range:
Continious operation: -20 | +80°C
Short (10 min) exposure: -40 | +100°C
Advantages of this Jump floor champion Swivel castor:
✓ stoney floor
✓-proof
✓ high temperature differences
standard Swivel castor + injection-moulded polyurethane Ø200 x W50mm for 300kg Prod ID: 40605
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-054-40V
- SKU 40605
- EAN 3838461406058
Specifications
