standard wheel + injection-moulded polyurethane Ø160 x W50mm for 400kg Prod ID: 40435

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

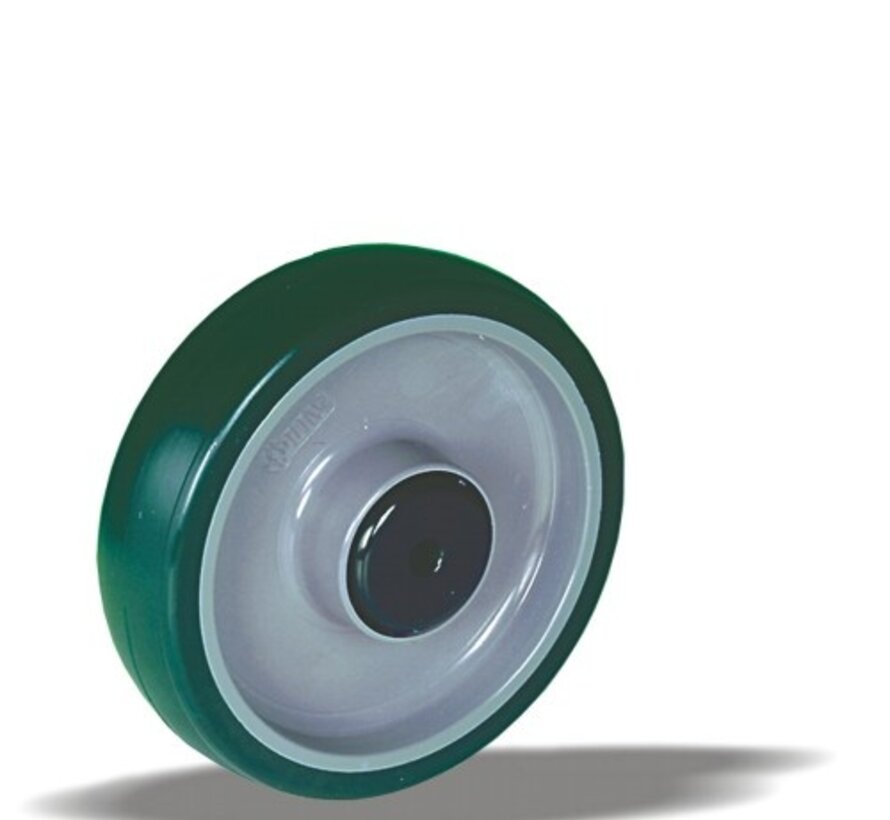

standard Wheel with roller bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide
Wheel diameter x width: 160 x 50 mm
Axle hole: 12,5 mm
Hub length: 58 mm

Approved and tested load capacity
Dynamic 400 kg
Static 500 kg

Temperature range:
Continious operation: -25 | +55°C
Short (10 min) exposure: -30 | +55°C

Advantages of this Jump floor champion wheel:
✓ stoney floor
✓-proof
✓ high temperature differences

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard wheel + injection-moulded polyurethane Ø160 x W50mm for 400kg Prod ID: 40435

ID 40435:standard Wheel with roller bearing and injection-moulded polyurethane with hardness 92 ° shore A on polyamide | Axle hole: 12,5 mm | Hub length: 58 mm | Jump floor champion, on stoney floor, cuts-proof, for high temperature differences
