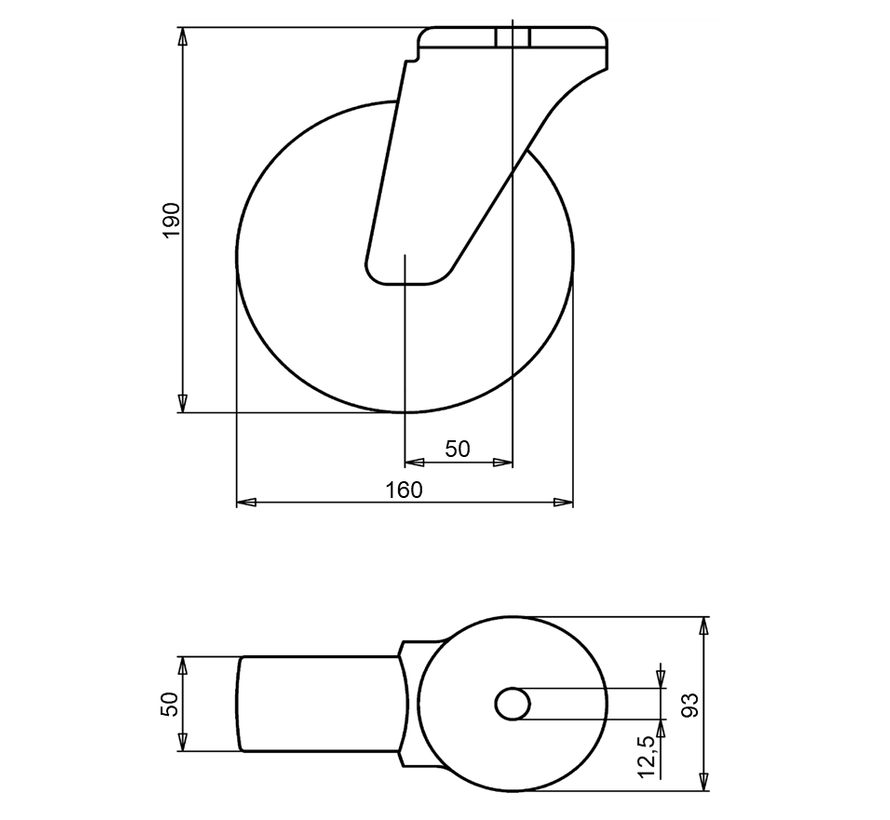

standard Swivel castor with an overall height of 190 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 93 mm
Wheel with plain bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide.
Approved and tested load capacity
Dynamic 300 kg
Static 370 kg
Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C
Advantages of this Soft floor wheel Swivel castor:
✓ force to start
✓ ride
✓ to surface when stationed
standard Swivel castor + elastic rubber tyre Ø160 x W50mm for 300kg Prod ID: 40224
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-044-32D
- SKU 40224
- EAN 3838461402241
Specifications
- Wheel diameter 160 mm
- Wheel width 50 mm
- Load capacity at 4 km/h 300 kg
- Static load capacity 370 kg
- Total height 190 mm
- Fitting Bolt hole
- Top plate size 93 mm
- Bolt hole Ø 12.5 mm
- Offset 50 mm
- Bearing Plain bearing
- Tread material Elastic rubber tyre
- Tread hardness 70 Shore A
- Wheel centre Polyamide
- Temperature range -25 to +80 °C
- Weight 1.58 kg
