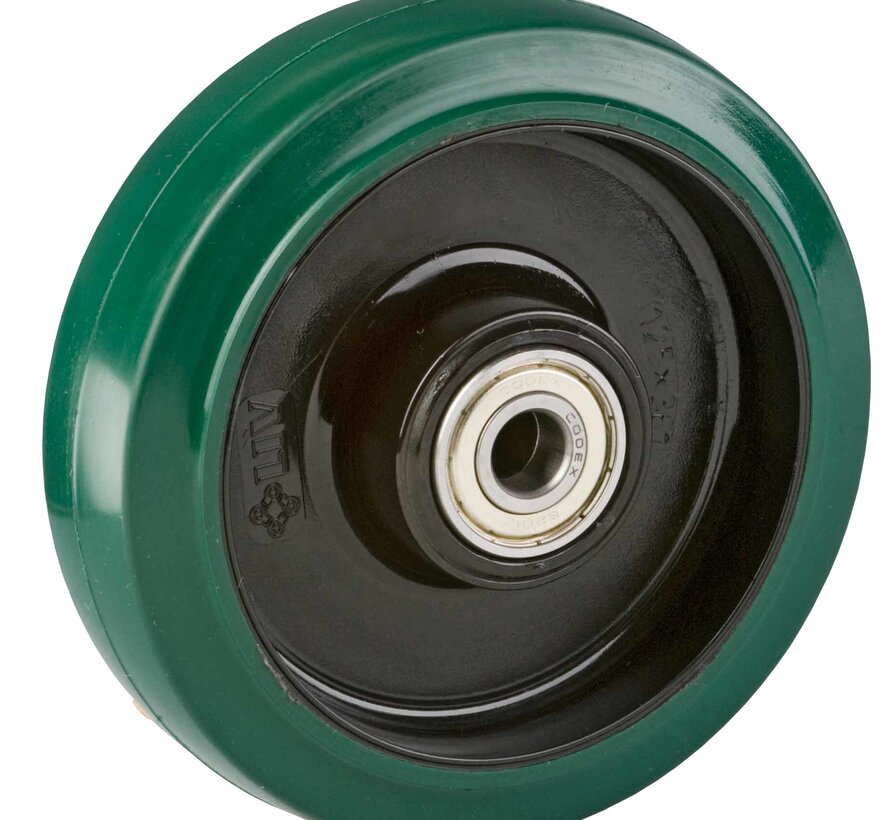

Wheel 160 mm, elastic rubber, ball bearing, axle hole 20 mm, 350 kg, Art. 2-040-32K
Wheel with elastic rubber tyre, wheel diameter 160 mm, on ball bearing. It carries 350 kg dynamic and 430 kg static, with a 20 mm axle hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Wheel |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
| Tread | elastic rubber tyre, 70 Shore A |
| Tread colour | green |
| Wheel centre | polyamide |
| Bearing | ball bearing |
| Load capacity, dynamic | 350 kg |
| Load capacity, static | 430 kg |
| Axle hole | 20 mm |
| Weight | 0.65 kg |
| Temperature, continuous | -25 to +80 °C |
| Temperature, short exposure (max. 10 min) | -30 to +110 °C |
| Fitting | Wheel hub |
| Hub length | 58 mm |
Tread free of PAH (EU directive 2005/69/EC).
Properties and use
The elastic rubber tyre starts rolling with little force and rides smoothly. It is gentle on the floor, also when the unit stands still. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-040-32K |
|---|---|
| SKU | 40133 |
| EAN | 3838461401336 |
