standard Swivel castor with brake + elastic rubber tyre Ø200 x W50mm for 300kg Prod ID: 39993

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

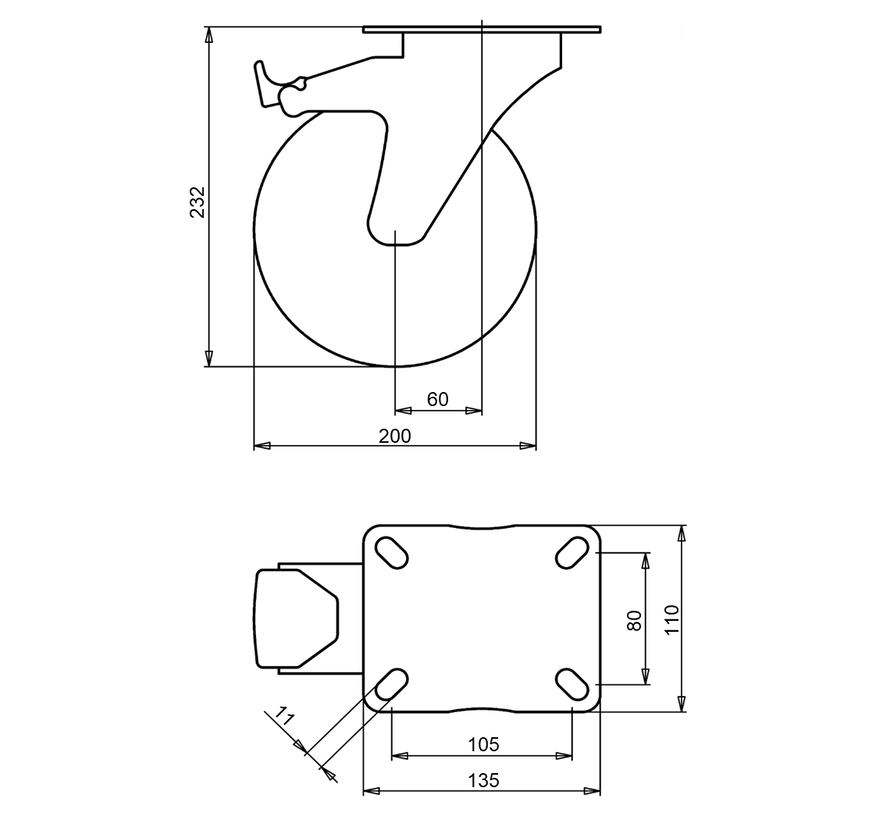

standard Swivel castor with brake with an overall height of 232 mm
Wheel diameter x width: 200 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with ball bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 300 kg
Static 370 kg

Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C

Advantages of this Soft floor wheel Swivel castor with brake:
✓ force to start
✓ ride
✓ to surface when stationed

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor with brake + elastic rubber tyre Ø200 x W50mm for 300kg Prod ID: 39993

ID 39993: Castor overall height 232 mm | 4 mounting holes with distance 105x80 mm | Wheel with ball bearing and elastic rubber tyre with hardness 70 ° shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Soft floo
