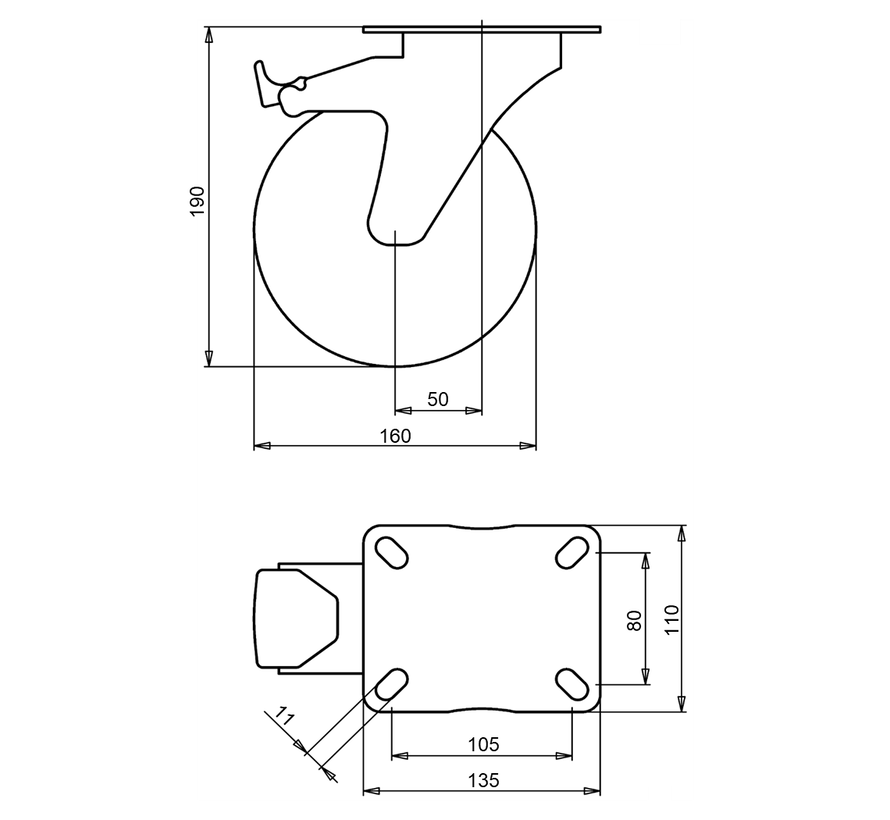

standard Swivel castor with brake with an overall height of 190 mm
Wheel diameter x width: 160 x 50 mm
Top plate with 4 mounting holes of 11 mm, mounting hole distance 105x80 mm and top plate outer dimensions: 135x110 mm
Wheel with plain bearing and elastic rubber tyre with hardness 70 ° shore A on polyamide
the double brake system, brakes the turning of the wheel and the swivel rotation.
Approved and tested load capacity
Dynamic 300 kg
Static 370 kg
Temperature range:
Continious operation: -25 | +80°C
Short (10 min) exposure: -30 | +110°C
Advantages of this Soft floor wheel Swivel castor with brake:
✓ force to start
✓ ride
✓ to surface when stationed
standard Swivel castor with brake + elastic rubber tyre Ø160 x W50mm for 300kg Prod ID: 39974
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-043-32D
- SKU 39974
- EAN 3838461399749
Specifications
- Wheel diameter 160 mm
- Wheel width 50 mm
- Load capacity at 4 km/h 300 kg
- Static load capacity 370 kg
- Total height 190 mm
- Fitting Top plate
- Top plate size 135 x 110 mm
- Hole spacing 105 x 80 mm
- Bolt hole Ø 11 mm
- Offset 50 mm
- Bearing Plain bearing
- Tread material Elastic rubber tyre
- Tread hardness 70 Shore A
- Wheel centre Polyamide
- Brake Total brake
- Temperature range -25 to +80 °C
- Weight 1.58 kg
