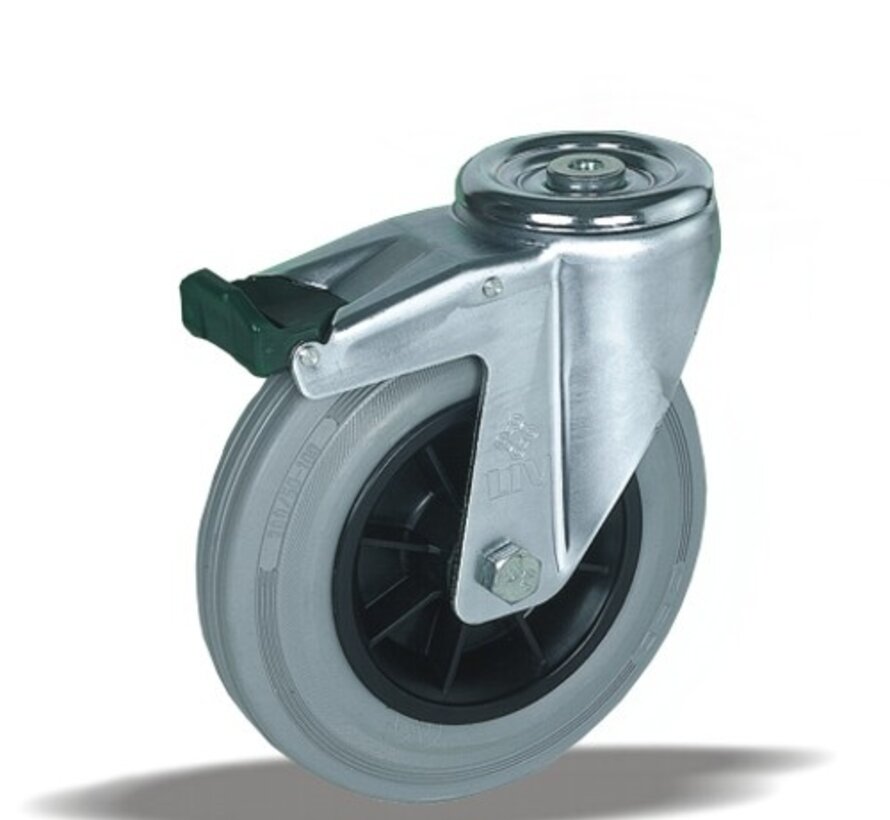

standard Swivel castor with brake + grey rubber tyre Ø80 x W30mm for 65kg Prod ID: 39585

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

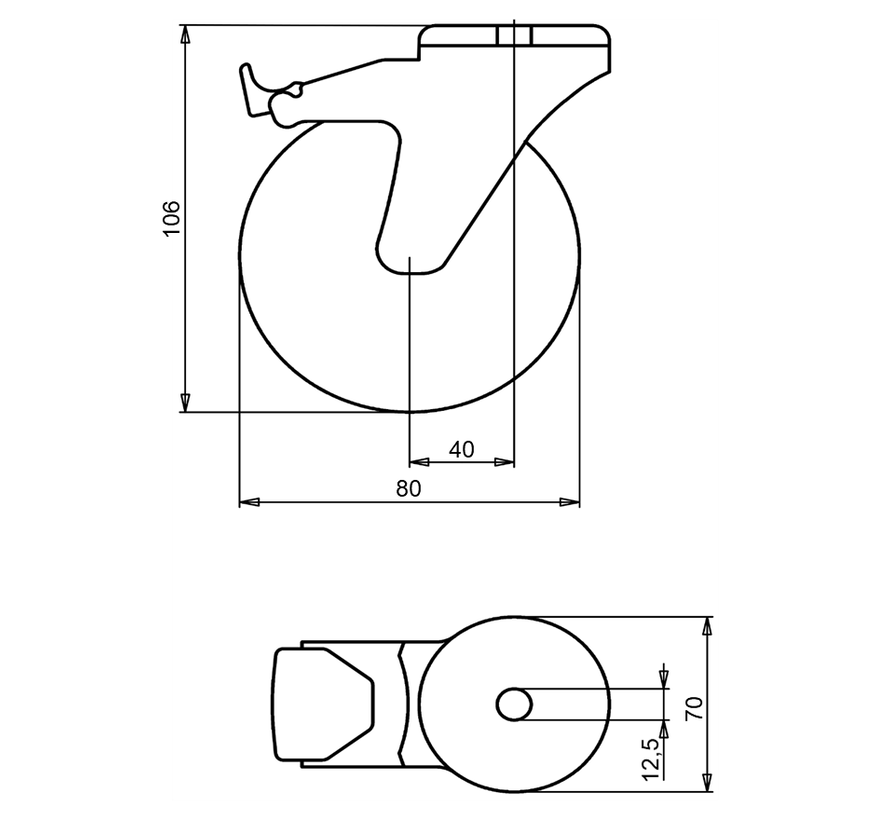

standard Swivel castor with brake with an overall height of 106 mm
Wheel diameter x width: 80 x 30 mm
Top plate with 4 mounting holes of 12,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 70 mm
Wheel with roller bearing and grey rubber tyre with hardness 83 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 65 kg
Static 80 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Elegant trip Swivel castor with brake:
✓ rubber is non-marking and leaves no marks on the floor
✓ reduces the transmission of both vibration and noise
✓ and outdoor use

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS standard Swivel castor with brake + grey rubber tyre Ø80 x W30mm for 65kg Prod ID: 39585

ID 39585: Castor overall height 106 mm | 4 mounting holes with distance #$% mm | Wheel with roller bearing and grey rubber tyre with hardness 83 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Elegant trip,
