furniture Swivel castor with brake + rubber tyre Ø50 x W20mm for 40kg Prod ID: 39303

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

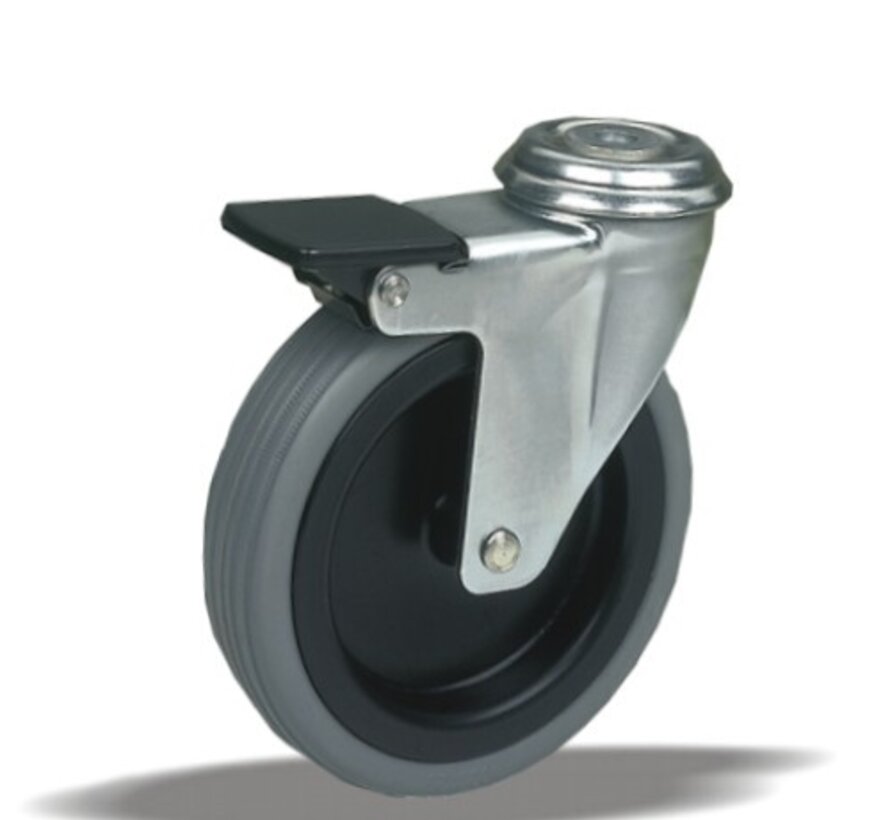

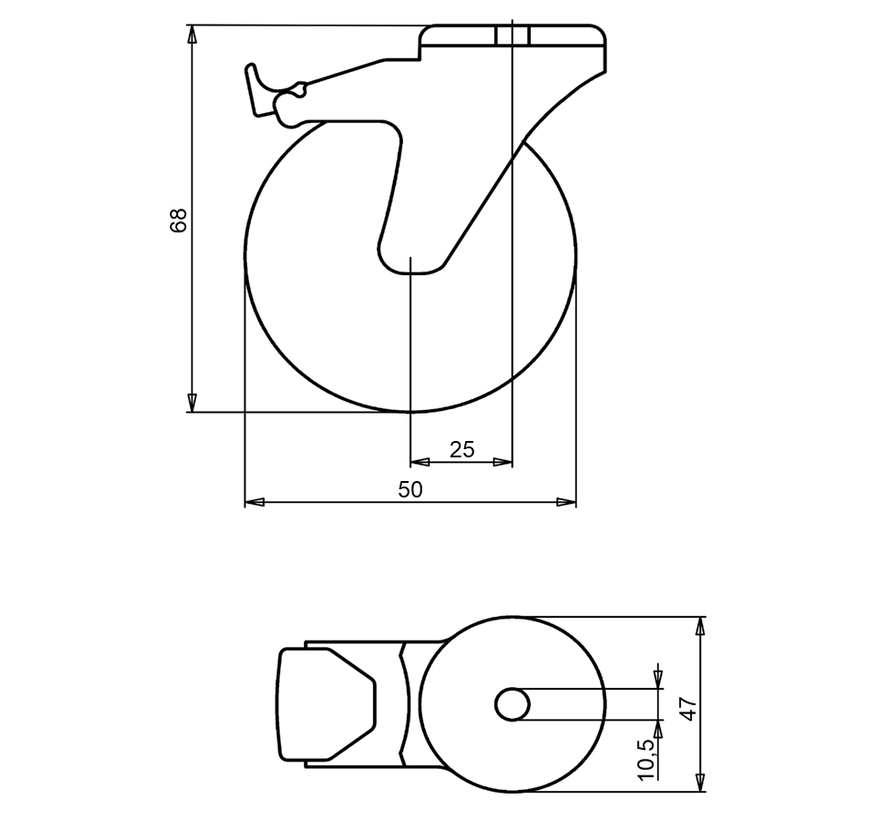

furniture Swivel castor with brake with an overall height of 68 mm
Wheel diameter x width: 50 x 20 mm
Top plate with 4 mounting holes of 10,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 47 mm
Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 40 kg
Static 50 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Silent move Swivel castor with brake:
✓ friendly
✓ non intrusive
✓ base

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor with brake + rubber tyre Ø50 x W20mm for 40kg Prod ID: 39303

ID 39303: Castor overall height 68 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Silent move, surface
