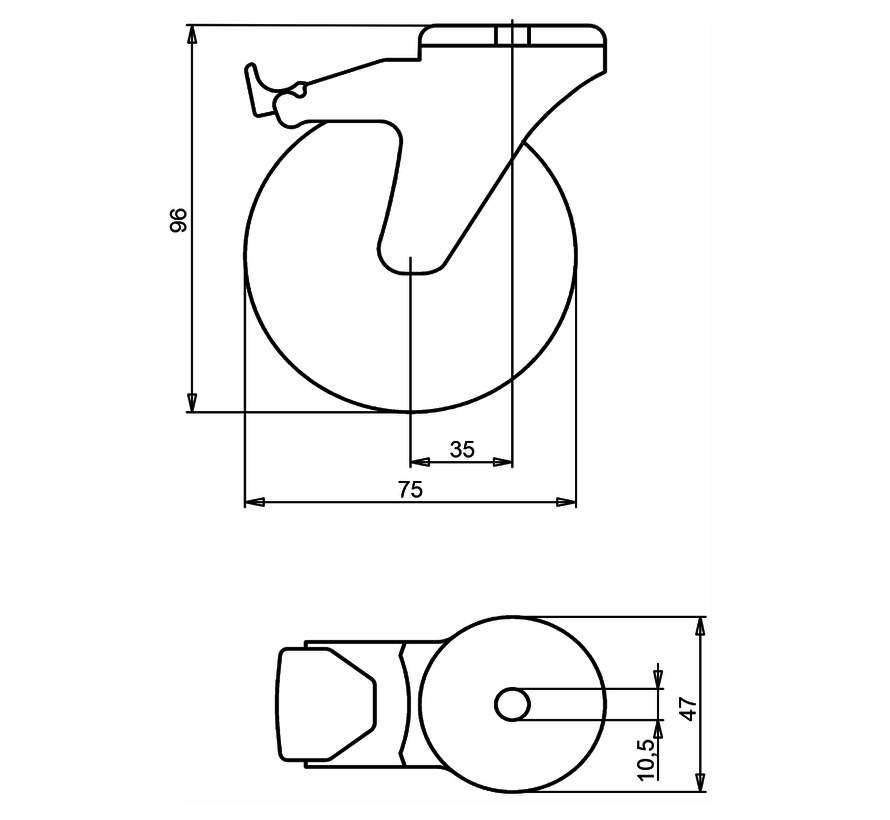

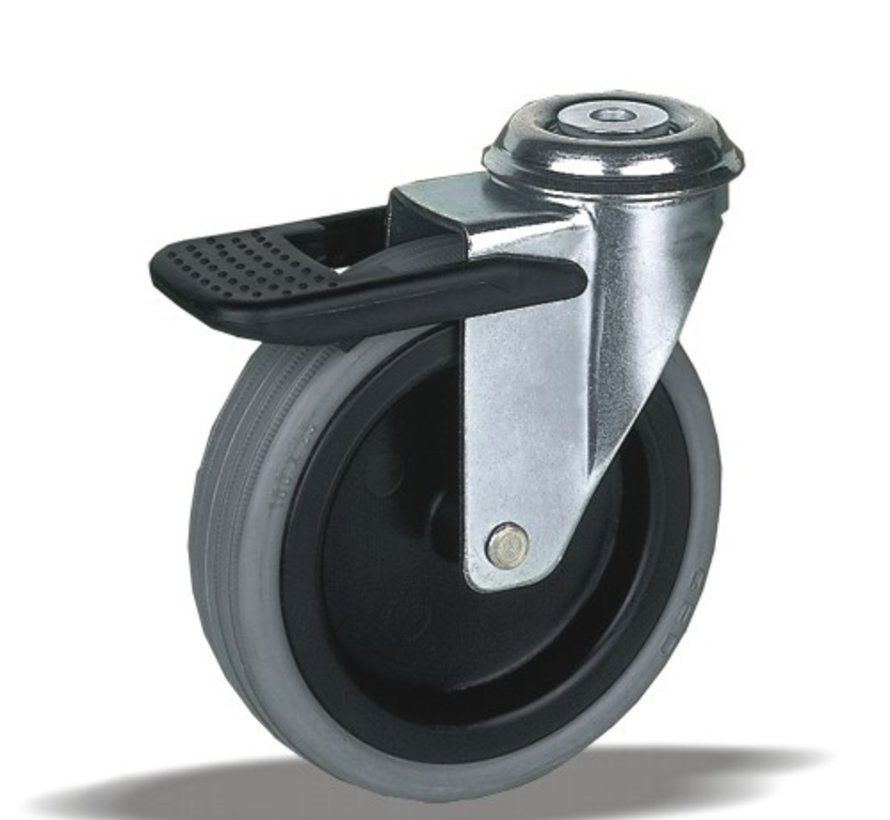

furniture Swivel castor with brake with an overall height of 96 mm
Wheel diameter x width: 75 x 25 mm
Top plate with 4 mounting holes of 10,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 47 mm
Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A on polypropylene.
Approved and tested load capacity
Dynamic 50 kg
Static 60 kg
Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C
Advantages of this Silent move Swivel castor with brake:
✓ friendly
✓ non intrusive
✓ base
furniture Swivel castor with brake + rubber tyre Ø75 x W25mm for 50kg Prod ID: 39175
- Product description
- Deep draw press forming and surface treatment of OE steel parts is our expertise
Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise
Deep draw press forming and surface treatment of OE steel parts is our expertise
Product information
- Article code 2-811 010
- SKU 39175
- EAN 3838461391750
Specifications
