furniture Swivel castor + rubber tyre Ø75 x W25mm for 50kg Prod ID: 39173

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

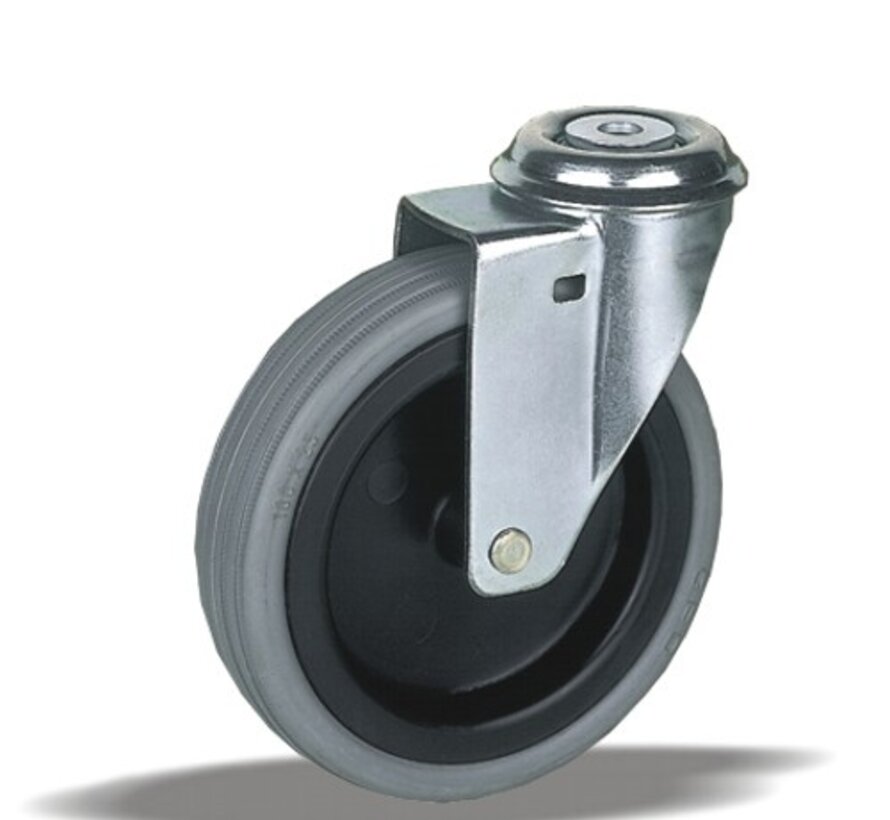

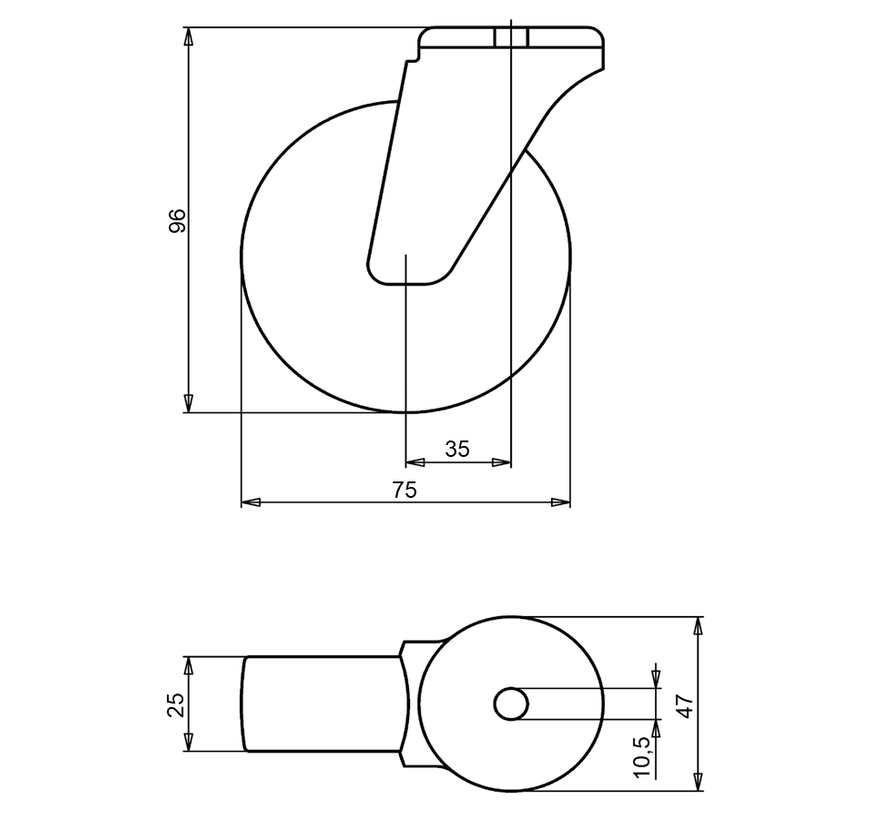

furniture Swivel castor with an overall height of 96 mm
Wheel diameter x width: 75 x 25 mm
Top plate with 4 mounting holes of 10,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 47 mm
Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A on polypropylene.

Approved and tested load capacity
Dynamic 50 kg
Static 60 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Silent move Swivel castor:
✓ friendly
✓ non intrusive
✓ base

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor + rubber tyre Ø75 x W25mm for 50kg Prod ID: 39173

ID 39173: Castor overall height 96 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A | Silent move, surface friendly, visually non intrusive, lightweight base
