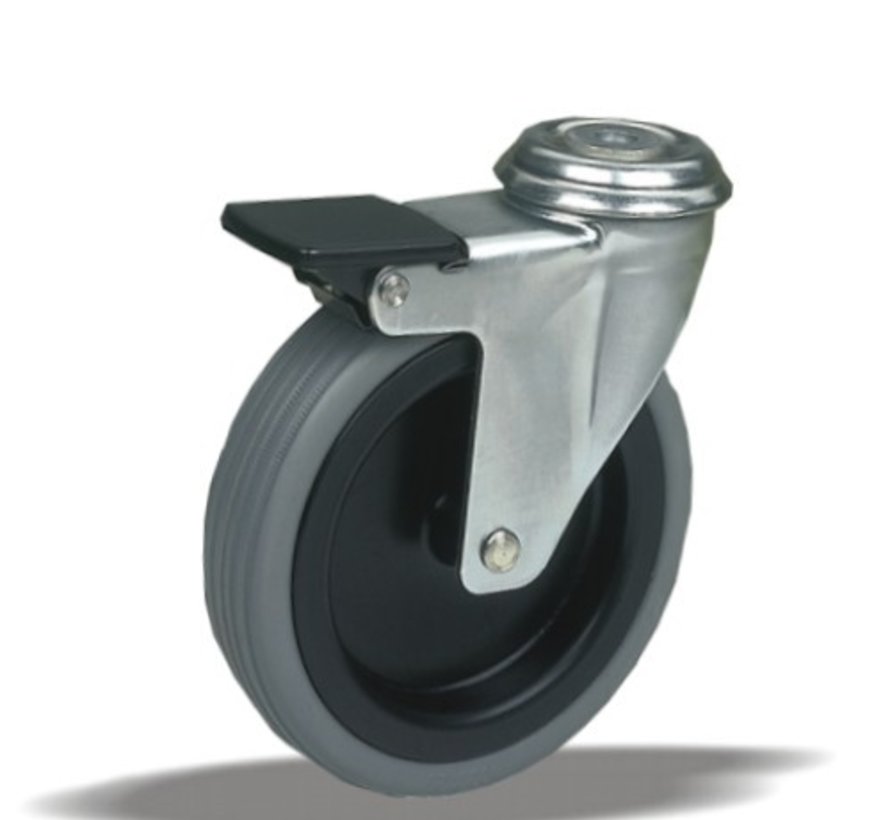

furniture Swivel castor with brake + rubber tyre Ø100 x W25mm for 60kg Prod ID: 39135

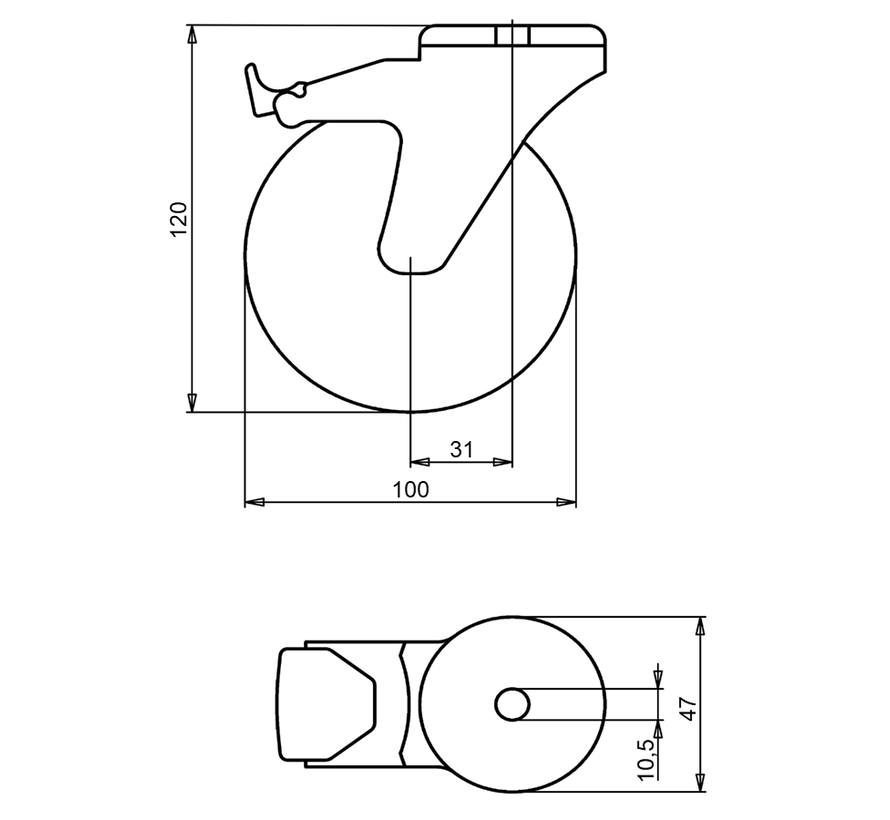

furniture Swivel castor with brake with an overall height of 120 mm
Wheel diameter x width: 100 x 25 mm
Top plate with 4 mounting holes of 10,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 47 mm
Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 60 kg
Static 70 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C



Advantages of this Silent move Swivel castor with brake:
✓ friendly
✓ non intrusive
✓ base
