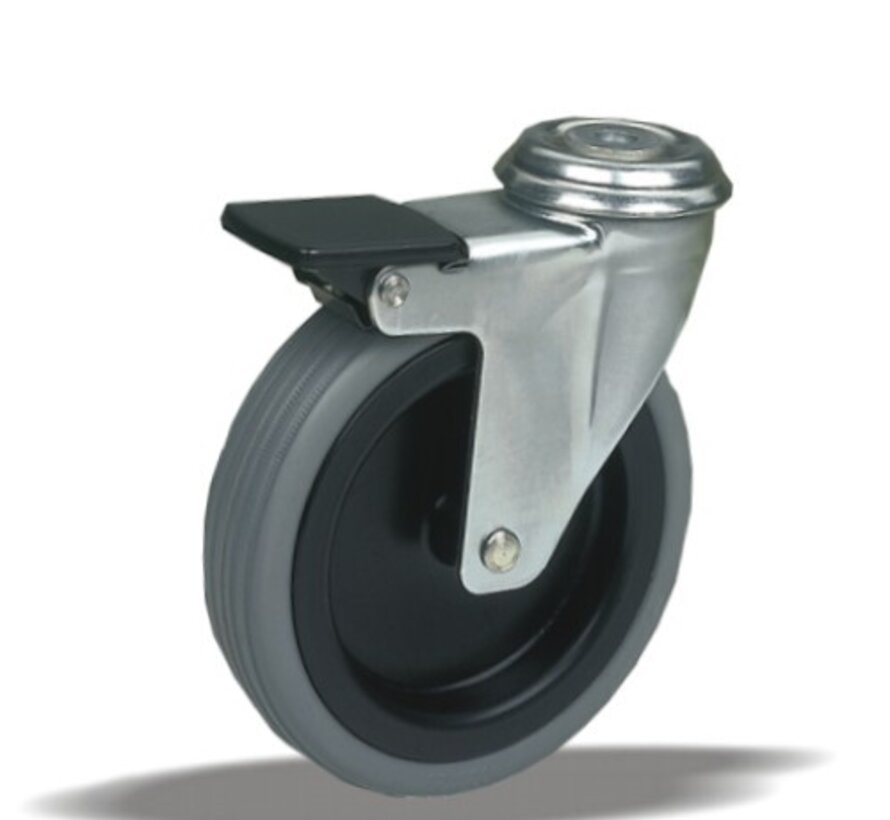

furniture Swivel castor with brake + rubber tyre Ø75 x W25mm for 50kg Prod ID: 39064

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

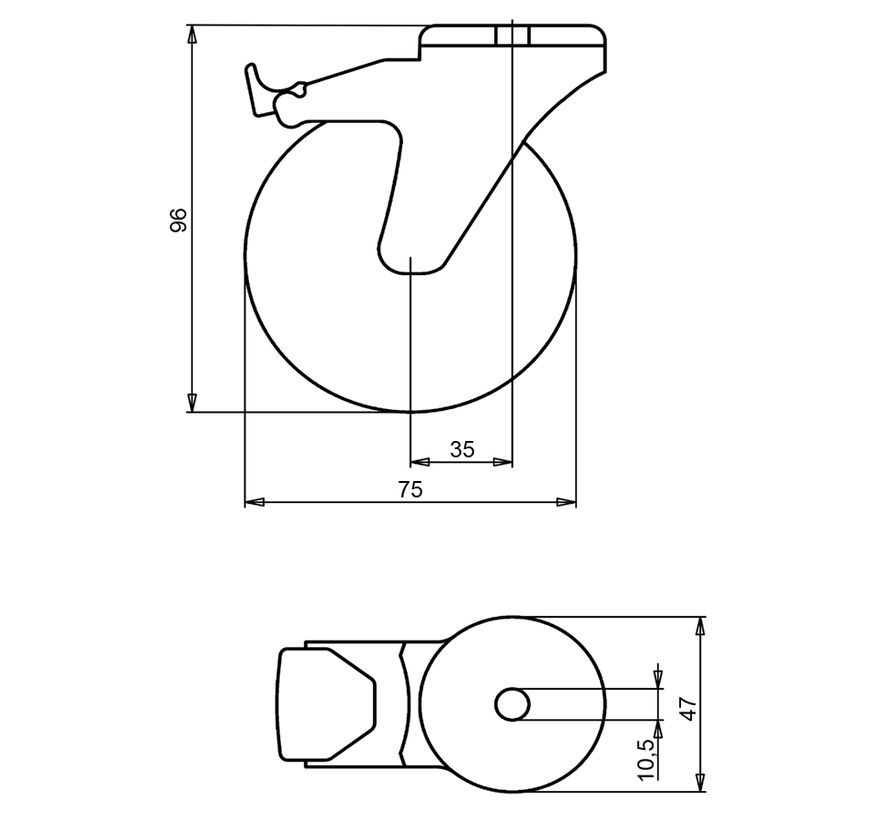

furniture Swivel castor with brake with an overall height of 96 mm
Wheel diameter x width: 75 x 25 mm
Top plate with 4 mounting holes of 10,5 mm, mounting hole distance #$% mm and top plate outer dimensions: 47 mm
Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 50 kg
Static 60 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Silent move Swivel castor with brake:
✓ friendly
✓ non intrusive
✓ base

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor with brake + rubber tyre Ø75 x W25mm for 50kg Prod ID: 39064

ID 39064: Castor overall height 96 mm | 4 mounting holes with distance #$% mm | Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Silent move, surface
