furniture Swivel castor with brake + rubber tyre Ø75 x W25mm for 50kg Prod ID: 39055

Brand: LIV SYSTEMS

Product description
Deep draw press forming and surface treatment of OE steel parts is our expertise

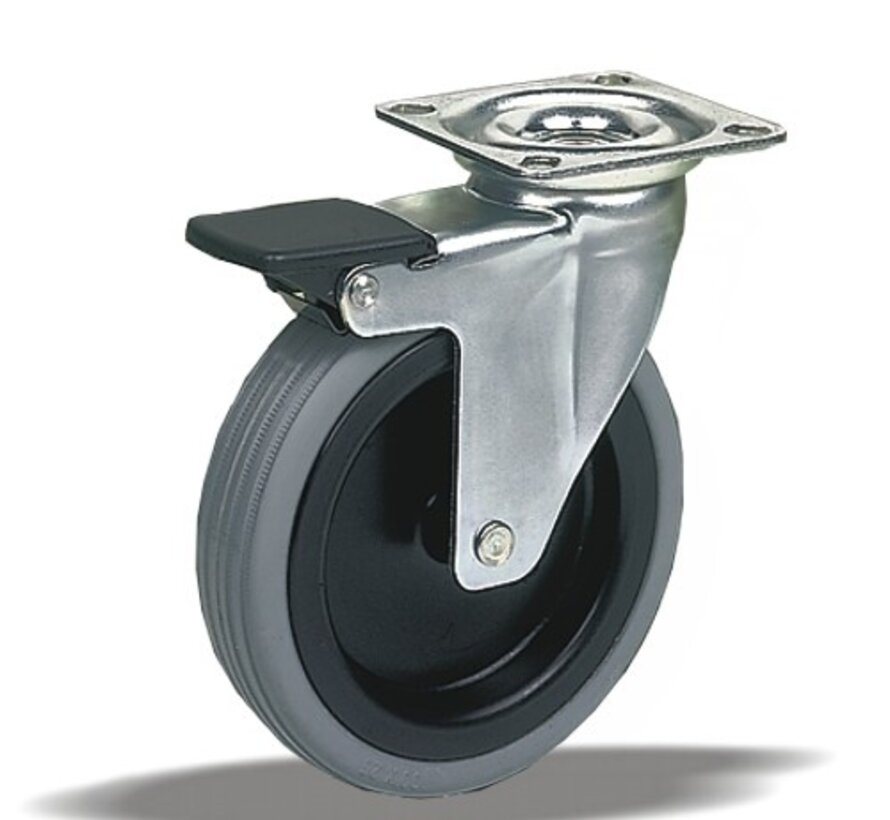

furniture Swivel castor with brake with an overall height of 96 mm
Wheel diameter x width: 75 x 25 mm
Top plate with 4 mounting holes of 6,5 mm, mounting hole distance 46x46 mm and top plate outer dimensions: 60x60 mm
Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A on polypropylene
the double brake system, brakes the turning of the wheel and the swivel rotation.

Approved and tested load capacity
Dynamic 50 kg
Static 60 kg

Temperature range:
Continious operation: -20 | +70°C
Short (10 min) exposure: -30 | +80°C

Advantages of this Silent move Swivel castor with brake:
✓ friendly
✓ non intrusive
✓ base

Deep draw press forming and surface treatment of OE steel parts is our expertise

LIV SYSTEMS furniture Swivel castor with brake + rubber tyre Ø75 x W25mm for 50kg Prod ID: 39055

ID 39055: Castor overall height 96 mm | 4 mounting holes with distance 46x46 mm | Wheel with plain bearing and rubber tyre with hardness 83 ° Shore A | The double brake system, brakes the turning of the wheel and the swivel rotation. | Silent move, surfac
