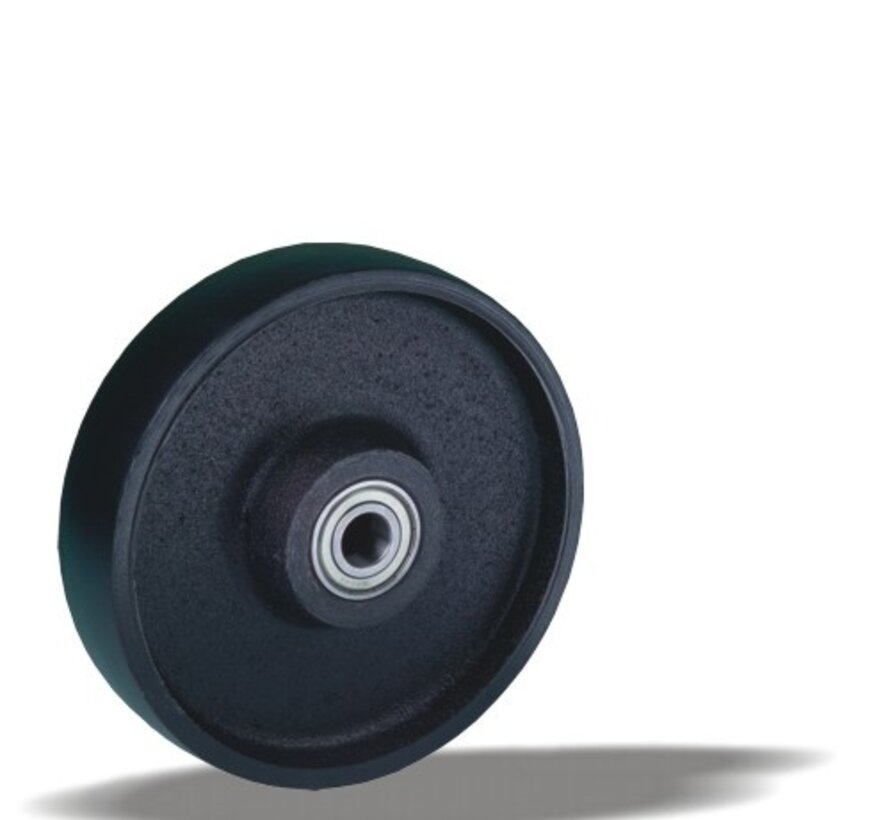

Heavy duty wheel 160 mm, cast iron, ball bearing, axle hole 20 mm, 900 kg, Art. 2-150-32K
Heavy duty wheel, 160 mm wheel diameter, cast iron tread, running on ball bearing. Rated load is 900 kg dynamic, 1120 kg static, with a 20 mm axle hole.
- Looking for a castor or wheel for your application? Contact us.
- Ask us for CAD models in STEP and IGES formats
- Short delivery times for large quantities of castors
- Pressing steel OEM parts is our expertise
You are in our product catalogue. This opens livsystems.eu in a new tab, where we show our factory and the background of the company.
Product description
| Type | Heavy duty wheel |
|---|---|
| Wheel diameter | 160 mm |
| Wheel width | 50 mm |
| Tread | cast iron tread, 180-220 180-220 HB |
| Wheel centre | cast iron |
| Bearing | ball bearing |
| Load capacity, dynamic | 900 kg |
| Load capacity, static | 1120 kg |
| Axle hole | 20 mm |
| Weight | 2.85 kg |
| Temperature, continuous | -40 to +130 °C |
| Temperature, short exposure (max. 10 min) | -40 to +130 °C |
| Fitting | Wheel hub |
Properties and use
Wears slowly and rolls with low resistance. Large temperature changes are no problem. On request: other wheel and tyre colours, and an electrically conductive or antistatic tyre (ESD).
Send us the drawing or the dimensions of the castor you are replacing and we confirm the match. Quote within 1 to 2 working days.
Specifications from the LIV product database, October 2026.
Product information
| Drawing number | 2-150-32K |
|---|---|
| SKU | 35554 |
| EAN | 3838461355547 |
